ABB TAS01 Turbine Auto Sync Module
❤ Add to collection

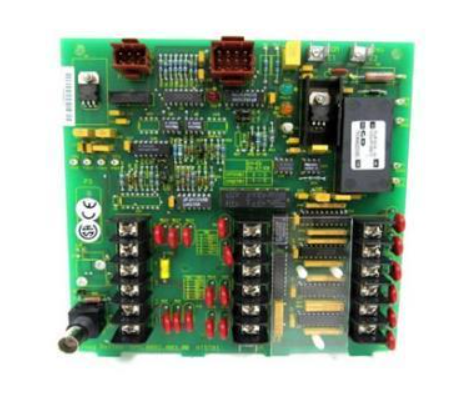

ABB TAS01 Turbine Auto Sync Module

+86-15305925923
Mr.Wang
wang@kongjiangauto.com
TAS01 Turbine Auto Sync Module
13065.00
¥8257.00
Weight:2.000KG
Quantity:
(Inventory: 2)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description
TAS01 Turbine Auto Sync Module

ABB TAS01 Turbine Auto Sync Module

Basic Information

Product Code: TAS01.

Country of origin: Germany, Finland or Sweden.

Dimensions: 17.8 x 5.1 x 33.0 cm.

Principle of operation

This module is mainly used in the Harmony Rack of ABB's Symphony Plus control system. It ensures that the generator's frequency and voltage match the grid before it is connected to the grid by monitoring the grid's frequency and voltage parameters and controlling the turbine generator's rotation speed, thus achieving automatic synchronisation between the turbine generator and the grid.

Specifically, it can monitor the status of the power grid in real time, and when the frequency and voltage parameters of the power grid are stable and meet the access conditions, the module will accurately control the rotational speed of the turbine generator and other parameters, so as to make it gradually adjusted to the state that matches with the power grid, and automatically complete the synchronous grid-connecting operation at the optimal moment, effectively preventing the damage to the equipment and power disturbances to the power grid due to the mismatch of frequency and voltage.

Performance characteristics

High-precision synchronous control: Equipped with high-precision monitoring and control functions, it can accurately adjust the parameters of the turbine generator to match with the power grid, ensuring the accuracy and stability of synchronisation and improving the reliability of the power system.

Strong compatibility: As part of the ABB Symphony Plus control system, it has good compatibility with other components in the system, and can be seamlessly integrated into the existing control system to achieve synergy of the whole system.

High reliability: Adopting high-quality electronic components and advanced manufacturing process, the module has good anti-interference ability and stability, and is able to operate stably for a long time under harsh industrial environments, guaranteeing the reliable synchronisation of the turbine generator.

Easy operation: the operation of the module is relatively simple, and through the interaction with the human-machine interface of the control system, the operator can conveniently set and monitor the parameters, which reduces the difficulty of operation and the risk of human error.

Application Fields

Thermal power generation: In thermal power plants, the turbine is the key equipment that converts thermal energy into mechanical energy and then drives the generator to generate electricity, ABB TAS01 Turbine Auto Sync Module can ensure stable synchronisation between the turbine and generator and the power grid, guaranteeing the high efficiency and stable operation of the thermal power generation system, which is crucial for large-scale power production.

Industrial captive power stations: Many industrial enterprises build captive power stations to meet their own power consumption needs. In these power stations, the turbine generators also need to be synchronised with the internal power grid or external public power grid, and the TAS01 module can provide reliable auto-synchronisation for the industrial power stations to ensure a stable and reliable power supply for the enterprises.

Maintenance

Regular Inspection: Regularly inspect the appearance of the module to see if there is any damage, looseness or corrosion. At the same time, check whether the connecting lines of the module are firm to ensure normal signal transmission.

Cleaning and heat dissipation: Keep the module clean to prevent dust and other impurities from accumulating and affecting heat dissipation and normal operation. Ensure that the installation location of the module is well ventilated, which is conducive to heat dissipation, so as to avoid performance degradation or failure due to overheating.

Software Update and Backup: Pay attention to the official software update information released by ABB, and update the control software of the module in time to get better performance and function support. At the same time, regular backup of important parameter settings and operating data to prevent data loss.
