ABB ACS850 machinery drives

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

Type designation is a unique reference number that clearly

identifies the drive by construction, power and voltage

rating and selected options. Using the type designation

you can specify your drives from the wide range of options

available. Options are added to the type designation using

the corresponding “plus” (+) code

17877.00
¥15500.00
Weight:3.200KG
Quantity:
(Inventory: 8)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

Type designation is a unique reference number that clearly

identifies the drive by construction, power and voltage

rating and selected options. Using the type designation

you can specify your drives from the wide range of options

available. Options are added to the type designation using

the corresponding “plus” (+) code


ABB ACS850 machinery drives

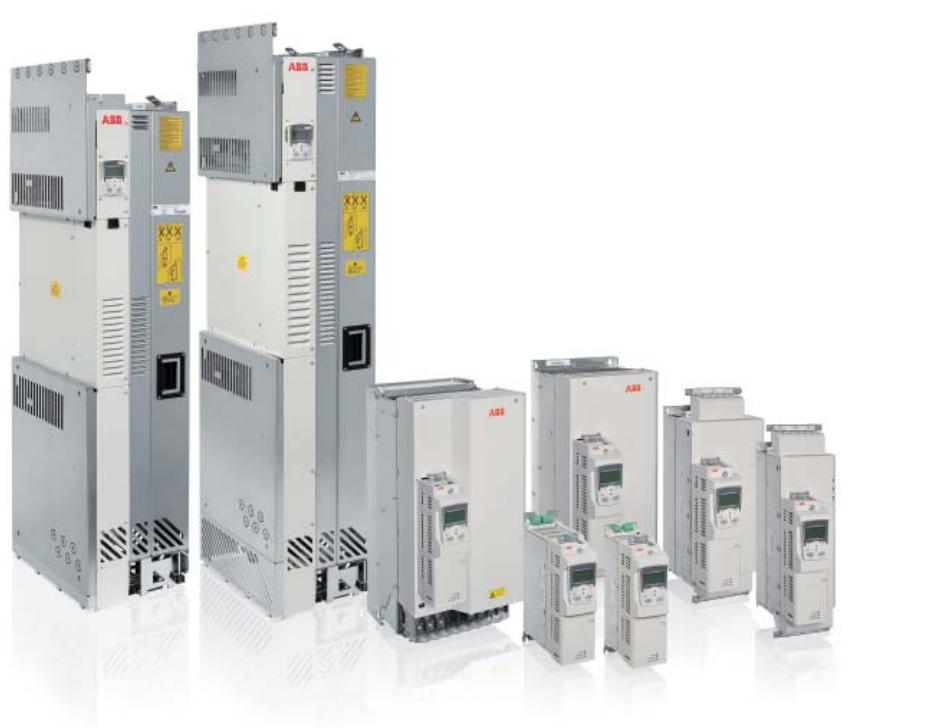

Introduction to ACS850

ABB machinery drives are designed to meet the production

and performance needs of machine builders, system

integrators, panel builders and end users in a broad range

of applications. ACS850 drives are ideal for applications like

cranes, extruders, conveyors, winders, pumps, fans and

mixers in industries such as material handling, plastic and

rubber, food and beverage, textile and metals.

The drives can be configured to meet the precise needs

of industries and order-based configuration is an integral

part of the offering. Covering a wide power and voltage

range with standard and optional features, the drives are

readily programmable, making their adaptation to different

applications easy.

Wide range of options

ACS850 drives offer a wide range of built-in options such

as different I/O and communications. A wide selection of

external accessories is also available. The flexibility and

programmability of the drives make them suitable for many

applications in different industries.

Feature Advantage Benefi t

Modular and compact design

Compact size, side-by-side

mounting

Smallest frame size is only 93 mm (4 in) wide.

More drives can be placed in the same cabinet.

Optimum installation layout and efficient cabinet space

usage.

Space and cost savings.

Modular design Many standard features and a wide range of options

allow different system configurations.

Fits many application needs.

Offers flexibility in system design.

User interface and programming

Intuitive human-machine interface Large alphanumeric display showing different assistants

and macros.

Faster and more accurate drive configuration.

Optimal drive settings as assistants offer interactive help.

Drive programming and

configuration

Can replace relays and small PLCs with function block

programming.

Lower investment cost.

Higher flexibility in system design.

Memory unit for easy drive

management

Complete drive configuration and settings are stored in

a separate memory unit.

Power or control unit can be replaced without

parameter setting.

Drive functionality can be easily configured, modified or

updated with the memory unit.

Offers quick and easy after-sales service.

Designed for reliability

Robust main circuit design Enhanced reliability.

Coated boards and long lifetime components.

Cooling supervision (depending on frame size).

Less process interruptions.

Lower maintenance costs.

Extensive protection Advanced thermal protection of the drive

semiconductors and motor.

Higher process uptime.

Early warning of any production interruptions.

Maintenance assistant Indicates preventive maintenance needs of drive, motor

or machine.

Helps with maintenance schedules and cost control of

maintenance.

Diagnostic assistant Helps in locating failures or reasons for performance

changes and suggests remedies.

Reduced process downtime.

Optimized use

Energy saving calculator Monitors used and saved energy, displayed in kWh,

currency (€ or $) or volume of CO2 emission.

Easy to check the retu

Based on direct torque control technology, the ACS850

offers highly advanced features. The ACS850 standard

control program provides solutions to virtually all AC drives

applications such as mixers, separators, extruders and

conveyors.

Fast and easy commissioning

The ACS850 standard control program offers flexibility and

extensive parameter settings. It consists of a simple, readymade program that can easily be modified to meet specific

application needs. Commissioning is also simplified by several

standard software features.

Pre-programmed protection functions

A wide range of features provide protection for the drive,

motor and the process:

− Ambient temperature

− DC overvoltage

− DC undervoltage

− Drive temperature

− Input phase loss

− Overcurrent

− Power limits

− Short circuit

Programmable protection functions:

− Adjustable power limits

− Control signal supervision

− Critical frequencies lock-out

− Current and torque limits

− Earth fault protection

− External fault

− Motor phase loss

− Motor stall protection

− Motor thermal protection

− Motor underload protection

− Panel loss

Program customization

In addition to standard control program functionalities the

ACS850 offers function block programming which makes it

possible to replace relays or even a PLC.

Removable memory unit

A removable memory unit provides easy maintenance by

storing the complete firmware including all user settings

and motor data. Thus, if the power unit or control unit is

replaced, the drive can be re-commissioned without any

reprogramming, just by moving the memory unit.

The removable memory unit:

− Stores the drive software and parameter settings

− Allows fast and easy recommissioning

− Enables software and parameter configuration at workshop

instead of doing it on-site

The features of ACS850 drives are designed to enhance their

reliability and durability as well as the easiness of use. Also

several advanced functions make the drives easy to use.

These functions can be accessed either via the user-friendly

assistant control panel or DriveStudio PC tool.

Macros

Several macros which have pre-set, application-specific

parameter settings are available as standard in each drive.

These pre-programmed parameter settings enable fast and

easy commissioning by adjusting all the relevant parameters

in just a couple of clicks.

Startup assistant

The intelligent and intuitive startup assistant allows first time

users to quickly get up to speed and customize the drive

according to their needs. This is complemented by a built-in

help function to make parameter-by-parameter setting easy.

This way the drive can be quickly commissioned, even without

manuals.

Maintenance assistant

The maintenance assistant reminds the user about the

drive’s preventive maintenance schedule or routine, or that

of its associated components such as motor, cabinet air

inlet filters and input contactors. It reminds users of planned

maintenance needs based on running hours, operating hours

or relay switching to reduce unplanned process interruptions.

Diagnostic assistant

Each ACS850 drive is equipped with a diagnostic assistant

that helps in locating the cause of any disturbance to the drive

and even suggests possible remedies. This reduces process

downtime by making repair or adjustments quicker and easier.

Energy saving features

− A calculator showing the used and saved energy, displayed

in kWh, currency (€ or $) or volume of CO2 emission. Data

is calculated by reference values stored in the drive by the

user.

− An energy efficiency optimizer that adjusts the motor flux in

such a way that the total efficiency is maximized.

− A load analyzer showing the load profile of the drive.

Short/long menus

The user interface can be configured so that it displays only

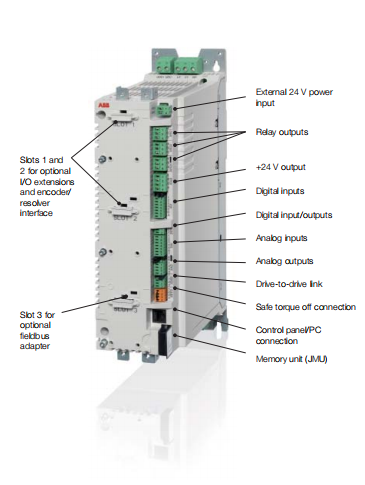

Standard I/O connections

ACS850 drives have one of the most extensive offerings of

standard I/Os on the market. Analog and digital I/O channels

are used for different functions such as control, monitoring

and measurement purposes (eg, motor temperature).

− Control voltage supply: external supply (24 V DC) input for

the control unit

− Digital I/O: 6 x DI, 2 x DI/O (can be used also for pulse train

inputs or outputs, max 32 kHz), 3 x RO

− Analog I/O: 2 x AI (mA or V), 2 x AO (mA)

− Thermistor input: motor thermistor (PTC)

− Start interlock: drive interlock input

− Embedded Modbus link as standard, galvanically isolated

for trouble-free operation and can be alternatively

configured as a high speed drive-to-drive link for masterfollower operation

− Safe torque off (STO): designed for Safety Integrity Level 3

(SIL 3) according to IEC 61508

− Control panel connection: PC tools and control panel

connection (RJ45)

− Memory unit connection: complete drive configuration and

settings are stored in the removable memory unit

*Total maximum current: 200 mA

External power input

24 V DC, 1.6 A

Relay output RO1 [Ready]

250 V AC/30 V DC

2 A

Relay output RO2 [Running]

250 V AC/30 V DC

2 A

Relay output RO3 [Fault (-1)]

250 V AC/30 V DC

2 A

+24 V DC*

Digital input ground

+24 V DC*

Digital input/output ground

Ground selection jumper

Digital input DI1 [Stop/Start]

Digital input DI2

Digital input DI3 [Reset]

Digital input DI4

Digital input DI5

Digital input DI6 or thermistor input

Start interlock (0 = Stop)

Digital input/output DIO1 [Output: Ready]

Digital input/output DIO2 [Output: Running]

Reference voltage (+)

Reference voltage (–)

Ground

Analog input AI1 (Current or voltage, selectable by

jumper AI1) [Speed reference 1]

AI1 current/voltage selection jumper

Analog input AI2 (Current or voltage, selectable by

jumper AI2)

AI2 current/voltage selection jumper

Analog output AO1 [Current %]

Analog output AO2 [Speed %]

Drive-to-drive link termination jumper

Drive-to-dr

  • Siemens SINAMICS S120 AC frequency converter
  • Emerson AMS 3210 Axis Position Monitor
  • Siemens SINAMICS DCM DC Converter and Control Module
  • Schneider Electric 31H7 series
  • ABB System 800xA wired network switch
  • Woodward ESDR 4/4T current differential protection relay
  • Meggitt Modular CPU card and input / output card
  • Meggitt MPC4 mechanical protection card
  • Meggitt Vibro Meter RPS 6U rack power module
  • Motorola MVME Series IPMC712/761 I/O Module
  • Analog Devices DS3800 Advanced NV SRAM Battery Cover
  • ABB DO02 Octal SPST Relay Module
  • GE Multilin D20/D200 Substation Controller
  • ABB PBA800 Process Bus Adapter
  • Foxboro Evo FBM237 Analog Output Module
  • Foxboro Evo FBM217 Discrete Input Module
  • Allen Bradley 1756 ControlLogix I/O Specifications Module
  • ​Molex SST-ESR2-CLX-RLL and SST-SR4-CLX-RLL communication modules
  • ABB ACS880-01-025A-3 frequency converter
  • SKiiP 1213 GB123-2DL V3 module
  • Bently 3500/60 and 3500/61 temperature modules
  • ABB ACS880-01-025A-3 frequency converter
  • Emerson DeltaV S-series Traditional I/O Modules
  • HONEYWELL EXCEL 5000 OPEN SYSTEM
  • Pepperl+Fuchs RSD-CI2-Ex8 Analog Input Module
  • Bently Nevada 3500/50M tachometer module
  • Woodward 2301A 9907 series electronic load distribution and speed controller
  • ABB IMDSI13 Digital Slave Input Module
  • Eaton XV-102 Touch Screen Display
  • Rockwell ProSoft MVI56-MCM Modbus master-slave communication module
  • Watlow Series CLS200 Controller
  • GE IS230 Series Industrial Managed Layer 2 Switches
  • GE IC693TCM302/303 Temperature Control Module
  • MKS 979B Atmosphere to Vacuum Transducer
  • Syco Tec 4061 AC Motor Spindle
  • Emerson DeltaV Electronic Marshalling Migration Solution
  • Barber Colman MA41-7153-502 and similar series actuators
  • BARTEC MODEX PROFIBUS 07-7331-2305 Series Interface Module
  • Rockwell Automation 1794 Series FLEX I/O Digital Input Module
  • GE PCI5565 Multi Channel MIL-STD-1553 Interface Card
  • Rockwell Automation 1757-SRM (B-series) module
  • KIDDE S732DVT-EST1 Digital Video, 2-Way MPD Data Tx, MM, Can
  • Foxboro Evo ™ FBM217 Discrete Input Module
  • Allen-Bradley SLC 500 ™ 1746 series I/O modules
  • Allen-Bradley SLC 500 ™ 32 channel digital I/O module
  • Allen Bradley 1746-NI8 Analog Input Module
  • Rockwell 1746-IB32 Digital Input Module
  • Emerson PACSystems ™ Ethernet Switch SLM082
  • GE IC695CRU320 redundant control unit
  • Bently 3500/15 AC and DC power modules
  • Horner APG HE693CALKIT simulation module
  • ABB INNPM22 Network Processor Module
  • Eckardt SRI986 Intelligent Valve Positioner
  • Honeywell System 57 5704 Control System
  • Schneider Electric 140CHS 1100 Communication Module
  • Moog CD series compact dynamic brushless servo motor
  • HARTING DIN 41612 connector
  • ABB DAPU100 3ASC25H204 Interface Template
  • ProSoft Technology ILX56-PBM PROFIBUS DPV1 Master/Slave Module
  • Emerson DeltaV S Series Traditional I/O Modules
  • MOTOROLA MVME6100 series VME single board computer
  • Emerson MVME5100 Series VME Bus Processor Module
  • Siemens 6EP1334-3BA00 (SITOP PSU200M) stabilized power supply
  • GE Power Management SR489 Generator Management Relay
  • Eaton MTLx544-S Series (MTL4544/S, MTL5544/S) Relay Power Supply
  • Emerson MVME5100 Series VME Bus Processor Module
  • Teknic SSt-6000-U Digital Servo Drive
  • HIMA HIMatrix MI 24 01 Safety Related Controller Module
  • Horner Automation MAN0344-03 Industrial Controller/Human Machine Interface (HMI)
  • Emerson Automation Series MC-PHAI01 (51403479-150) 8-Channel Analog Input Module
  • Bently Nevada 3500/42M Proximity Seismic Monitor
  • GE VMIACC5595 Embedded Industrial Control Module
  • Rockwell SLC ™ 500 series 1747-L543 (SLC 5/04 controller)
  • Honeywell WEB-HMI10/CF 10.1 "TFT ARM Cortex-A53 Quad Core 3 Ethernet, 2 USB ports
  • Rockwell Automation 1756 Series ControlNet Communication Module
  • NI 6030E/6031E/6032E/6033E series
  • ABB 1TGE120011R1000 motor and feeder control unit
  • Watlow CLS200 series controller
  • Schneider 140DDI84100 Discrete Input Module
  • Modicon Quantum 140ACI03000 Analog Input Module
  • Rockwell Automation ControlLogix 5570 and 5560 controllers
  • ABB IEMMU21 module
  • Endress+Hauser Prosonic T FMU30 Ultrasonic Liquid Level Measuring Instrument
  • ABB SC510 submodule carrier (without CPU)
  • Beijer Mitsubishi Electric E1000 Series Operation Panel
  • HIMA HIMatrix F30 Compact Safety Controller
  • HIMA HIMax Safety Control System
  • HIMA HIMatrix F2 DO 8 01 Remote I/O Module
  • HIMA HIQuad X Safety System
  • HIMA HIMax X-SB 01 System Bus Module
  • KOLLMORGEN Saia PCD Series I/O Modules
  • Kollmorgen S700 series digital servo amplifier
  • KOLLMORGEN P70360 High Performance Microstep Driver
  • KOLLMORGEN AKM series synchronous servo motor
  • KOLLMORGEN AKD ®- N servo drive
  • AKD ® Servo driver CANopen communication
  • AKD ® Servo drive fault card
  • SERVOSTAR ® CD series servo amplifier
  • SERVOSTAR ® CD-LITE servo amplifier
  • SERVOSTAR ™ 601... 620 digital servo amplifier (S600 series)
  • B&R Power Panel 300/400 Touch Screen
  • Emerson S-series Mass Connection Solutions
  • Emerson DeltaV SIS Logic Solver (SLS1508)
  • Emerson DeltaV Ethernet I/O Card (EIOC)
  • Emerson DeltaV ™ M-series Traditional I/O
  • Emerson DeltaV ™ Electronic Marshalling for Migrations
  • Emerson DeltaV Controller
  • Emerson DeltaV Bulk Power Supplies
  • Emerson DeltaV SD Plus Controller
  • Emerson DeltaV M Series Virtual I/O Module 2 (VIM2)
  • Emerson DeltaV M Series MD Plus Controller
  • Emerson Ovation ™ Power system (5X00785G09)
  • Emerson DeltaV Intelligent Switch
  • Emerson A6110 Dual Channel Shaft Vibration Monitor
  • Emerson MMS 3210 Dual Channel Axial Displacement Transmitter
  • Emerson MMS 3120 Dual Channel Bearing Vibration Transmitter
  • Emerson MMS 677X Dual Channel Bar Chart Indicator
  • Emerson Martens Standard Signal Instrument S 1010
  • Emerson CON021 Eddy Current Signal Converter
  • AMS 6500 Classic System Protection Card
  • Emerson Machine Monitoring Systems RPM Transformer PR 9376
  • Emerson Linear Displacement Sensor PR 9350/.. Series
  • Emerson PR 9376 series eddy current sensor system
  • Emerson Electric Power Absolute Vibration Sensor (PR 9266/.. And PR 9268/..)
  • Emerson Motion Control FX 490
  • Emerson The Ovation ™ Control System
  • Emerson Ovation Distributed Control System Input/Output (I/O) Module
  • Emerson HART High Performance Analog Input Module
