The PMC916 (POWER MONITORING & CONTROL UNIT)is an intelligent
multipurpose power parameter monitoring and control device which has an
extensive range of applications in power systems. The PMC916,which can
be employed directly as a power meter, features eight switch signal channels
for the monitoring of the switch contact status. The four relay outputs of the
PMC916 allows for remote control, and alarm control by relating power
parameters as voltage, current, frequency and power,

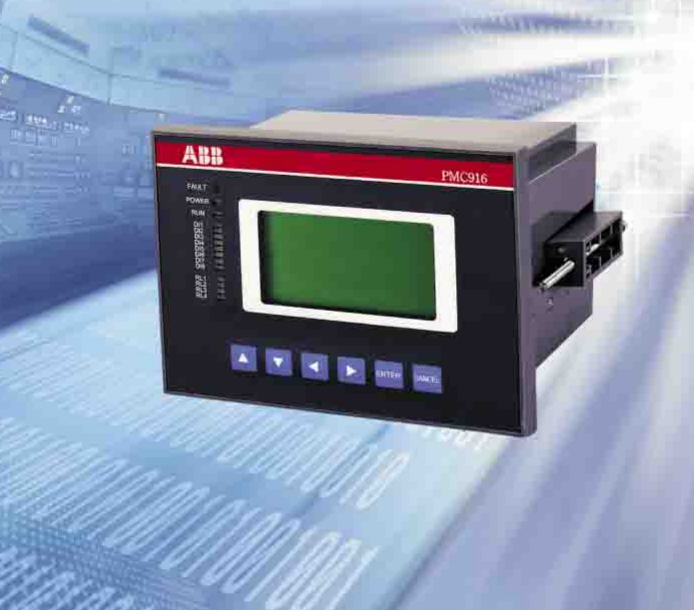

ABB PMC916 Power Monitoring & Control Unit
PMC916 supports user-oriented communication protocol with opening form.
Two specifications(PMC916and PMC916-C) support two kind of communication
ports respectively:RS485(PMC916) or CAN(PMC916-C); and support two
kinds of communication protocols respectively: MODBUS-RTU(PMC916) or
Hilon B(PMC916-C). PMC916can be connected to the communication of
computer-based monitoring and control systems conveniently.
1.1 PMC916 Internal Structure & Information Illustration
PMC916 has two MCU inside, which are defined as'DISPLAY MCU' and
"MASTER MCU'. The task of 'DISPLAY MCU' is to deal with the keyboard and
display of PMC916. 'DISPLAY MCU' and 'MASTER MCU' communicate and
exchange information by inner bus.
PMC916 input and output system include: "SWITCH INPUT", "ANALOG INPUT" and
"CONTROL OUTPUT" interface management part. The three interface management part
all exchange information and receive work & control commands from "MASTER MCU"
by inner bus.
PMC916 communicate and exchange information with monitoring and control system
by RS485/CAN communication port, and adjust time with system clock at the same time.
1.2Technical Specification
Standards:
IEC61000-4-2 (EN61000-4-2)Electrostatic Discharge Test
Level 3
IEC61000-4-3 (EN61000-4-3)Radiated,Radio-frequency,
Electromagnetic Field Immunity Test
Level 3
IEC61000-4-4(EN61000-4-4)Electric Fast Transient/Burst Immunity Test
Level 4
IEC61000-4-5 (EN61000-4-5)Surge Immunity Test
Level 3
IEC61000-4-6(EN61000-4-6) Immunity Test to Conducted Disturbance
Level 2
IEC61000-4-11(EN61000-4-11)Voltage Dip
EN55011Radiated Disturbance
Class A
Measurement Technical Indicators
Operating Parameters
Operating Power Supply: AC220V, range: 85V-265V
or DC220V,range:110V-300V
Power Consumption:s15W
Operating Temperature/ Storage Temperature:-5℃~+55℃/-20℃~+70℃
LCD Resolving Capability:128X 64(POINT)
Weight:977g
Protection Level:IP40(face)
Input Characteristic:Current Measurement:5A/1A(extra indication is needed when order
if you need 1A measured current)
Voltage Measurement:220V(AC phase voltage true RMS)
Remote Signal Resolving Capability: (2ms(SOE time resolving
capability)
2 Function Profile
2.1 Measurements of Power Parameters
Measurements of power parameters include 3-phase Voltage Measurements, 3-phase
Current Measurements, power factor Measurements, then calculate other extended
power parameters such as power, Kilowatt-hour, etc..
Current,Zero-sequence Current
la,lb, lc,ln
Line_line Voltage /Phase Voltage
Uab, Ubc,Uca / Ua, Ub,Uc
3-phase Power Factor*
Pfa,PFb,PFc,LD(lead),LG(lag)
System Frequency and Power FactorF,PF
System Power
P, Q
3-phase Frequency
Fa,Fb, Fc
3-phase Active Power*
Pa,Pb,Pc
3-phase Reactive Power*
Qa, Qb, Qc
3-phase Apparent Power*
Sa, Sb, Sc
3-phase Active Kilowatt-hour*
KWH, KWHa, KWHb,KWHc
3-phase Reactive Kilowatt-hour*
KWARH, KWARHa,KWARHb,KWARHc
*Voltage & Current Measurements
Measured voltage signals are obtained through collecting and processing, and the true
RMS of 3 line_line voltage or phase voltage is displayed on the screen of PMC16.we
adopt direct input if the measured voltage is 0.4KV, and use voltage transformer as
input if the measured voltage is 0.69KV-35KV.
PMC16 allows for a voltage measurement of up to 999999V.
Measured current signals are obtained through collecting and processing, and the true
RMS of 3-phase current is displayed on the screen of PMC16.we adopt direct input if
the measured current is no more than 5A,and use current transformer as input if the
measured current is above 5A.
PMC16 allows for a current measurement of up to 32000A.
The secondary circuit current of the zero-sequence current transformer used in zero-
sequence current measurements is0.02-1A. Measured current signals are obtained
through collecting and processing, and the true RMS of zero-sequence current is
displayed on the screen of PMC16.
