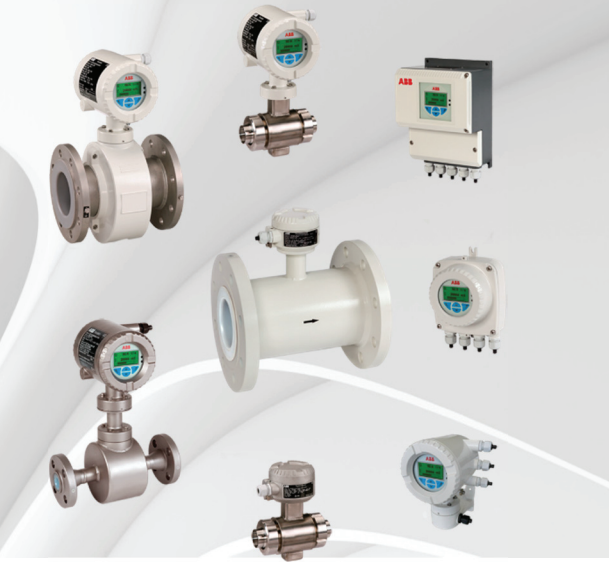

ABB FEP300 ProcessMaster
1 Safety instructions for repair work
ABB flowmeters are designed to be easy to repair thanks to
uniform replacement parts and simple replacement of
predefined parts.
However, if repair work is not carried out in accordance with the
guidelines, this may result in malfunctioning of the device,
causing serious injury to persons, and harm to the environment.
This is especially true for safety-critical devices and those
certified for use in explosion hazard environments.
Certifications will also lapse if the repairs were not carried out
with the proper tool or by persons without adequate training.
We therefore recommend all repair work on flowmeters be
carried out by ABB service technicians.
As the manufacturer of the device, ABB cannot guarantee the
necessary quality of the repair procedures if the work and/or
parts exchange was not carried out by ABB.
The plant operator is responsible for all repairs carried out by
the customer, plant operator, or third party. In this case, ABB will
reject all responsibility for any improper device functionality, in
particular all safety-related functions.
ABB does not assume any liability for the deterioration or loss of
device performance, malfunctions, or damage arising from the
above repair work or replacement. All liability for defects shall
lapse when the replacement or repair work is not carried out by
ABB. If you are unsure about the repair process even if some or all
replacement parts are available, please get in touch with ABB
Service before beginning work.
Respect national and internal laws when carrying out repairs. In
particular laws relating to certified flowmeters used in explosion
hazard environments. Repair work which is carried out without
following the legal requirements can result in the revocation of
your operating permit.
2 Name plate specifications for spare parts orders
The flowmeter version can be identified by referring to the name plate that is attached to the housing.
Name plate for model with integral mount design
When placing spare parts orders, always remember to state the order number as shown on the name plate.
1 Order number
Figure 1: Name plate for model with integral mount design
Name plate for model with remote mount design
When placing spare parts orders, always remember to state the order number as shown on the name plate

Name plate, transmitter
When placing spare parts orders, always remember to state the order number as shown on the name plate.
Transmitter housing, models FEP311, FEP511 (integral mount design) Note
Prices available upon request!
Figure 4: Dual-compartment housing
Number Designation FEP311
Ordering number
FEP511
Ordering number
Recommended spare
part Price (€)
1 – 4 Housing complete, preassembled, standard, M20x1.5
Housing complete preassembled, standard, NPT ½ in.
D800D515U01
D800D515U02
D800D518U01
D800D518U02
Housing complete, preassembled, stainless steel, M20x1.5 D800D518U04 D800D518U04
Housing complete preassembled, standard, NPT ½ in. D800D518U05 D800D518U05
1 – 3 Housing cover set D800D517U01 D800D517U01 x
4 Base plate, type 3, standard (covered) D685A1156U01 D685A1156U01
Base plate, type 3, standard (covered) programmed D685A1156U01A D685A1156U01A x
1 Housing cover with window D612A197U01 D612A197U01
Housing cover (stainless steel) with window 3KQZ407112U0100 3KQZ407112U0100
3 Housing cover without window D379D172U01 D379D172U01
Housing cover (stainless steel) without window 3KQZ407109U0100 3KQZ407109U0100
2 O-ring 118 x 1.7 D101A034U05 D101A034U05 x
– Name plate
Number Designation FEP311
Ordering number
FEP511
Ordering number
Recommended
spare part
Price (€)
2 Housing+Backpl.INT M 20 Type4 FEPSL
Housing+Backpl.INT NPT Type4 FEP
3KXF002296U0100
3KXF002296U0200
3KXF002296U0100
3KXF002296U0200
SL Backplane Type4 FET/FEP FEP (covered) 3KXF002058U0100 3KXF002058U0100 x
SL Backplane Type4 FET/FEP (covered) programmed 3KXF002058U0100A 3KXF002058U0100A x
1 Cover with window VKJ Type4 Integral 3KXF002365U0100 3KXF002365U0100 x
O-Ring ?32 X.070 in. (concealed) 3KQP002016U0100 3KQP002016U0100 x
– Name plate
(the order and serial numbers must both be stated)
3KXF002345U1100 3KXF002345U1100
