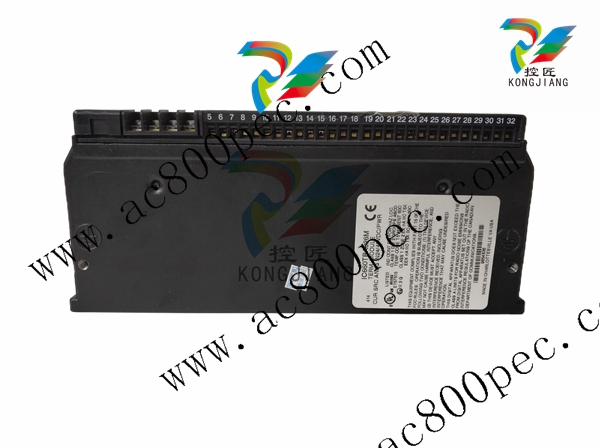

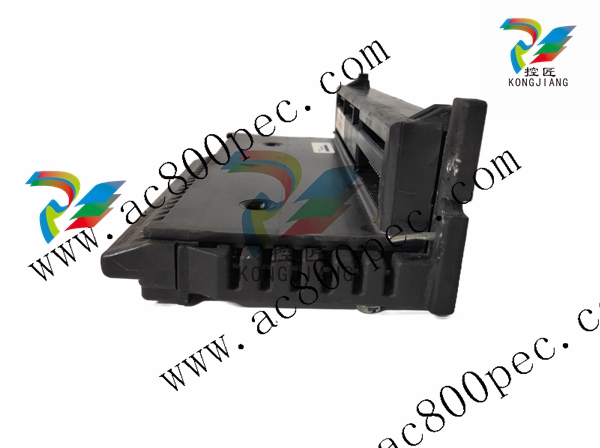

GE FANUC IC660 Genius® I/O VersaMax® IP

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

Genius I/O provides a complete set of discrete, analog, and relay modules, with circuits ranging from 6 to 32. Genius I/O modules are not just interfaces with peripherals,

They are intelligent, durable, and independent modules that are more practical than traditional I/O. The I/O configuration of many modules can be customized, resulting in extremely high efficiency.

The most important reason why Genius I/O technology is used in engineering is cost. Genius I/O, with its modular design and advanced error diagnosis technology, greatly saves initial costs

The cost of downtime and system downtime.

12000.00
¥12000.00
Weight:3.500KG
Quantity:
(Inventory: 20)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

Genius I/O provides a complete set of discrete, analog, and relay modules, with circuits ranging from 6 to 32. Genius I/O modules are not just interfaces with peripherals,

They are intelligent, durable, and independent modules that are more practical than traditional I/O. The I/O configuration of many modules can be customized, resulting in extremely high efficiency.

The most important reason why Genius I/O technology is used in engineering is cost. Genius I/O, with its modular design and advanced error diagnosis technology, greatly saves initial costs

The cost of downtime and system downtime.


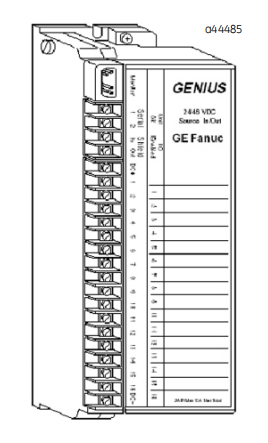

GE FANUC IC660 Genius® I/O VersaMax® IP

Chapter 1 Overview of Genius I/O Products

Genius I/O provides a complete set of discrete, analog, and relay modules, with circuits ranging from 6 to 32. Genius I/O modules are not just interfaces with peripherals,

They are intelligent, durable, and independent modules that are more practical than traditional I/O. The I/O configuration of many modules can be customized, resulting in extremely high efficiency.

The most important reason why Genius I/O technology is used in engineering is cost. Genius I/O, with its modular design and advanced error diagnosis technology, greatly saves initial costs

The cost of downtime and system downtime.

Characteristics of Genius I/O

Genius I/O modules are connected using twisted pair cables, which significantly reduces costs compared to traditional chassis mounted I/O

The configuration of points on the module can be determined by the user, and the input and output circuits on each discrete or analog module can be mixed and used

• It can automatically report input and output status, reduce error checking costs, and does not require additional software

Many modules provide electronic fuses and overload protection, which can cut off the circuit within 5 microseconds. These settings can be reset by PLC or handheld monitor

These modules are made of cast aluminum and can be directly installed on site, reducing the configuration work for panels, conduits, and auxiliary power supplies

Genius I/O's advanced error diagnosis technology includes detecting and reporting configuration errors, running fault causes, and fault locations, which can save 50% of downtime losses

System fault detection ratio


System fault detection ratio

Typical System Malfunctions Traditional Hardware Reports Genius I/O Reports

CPU - parity errors, processor, etc. 5% 100% 100%

I/O - Power Supply

I/O - module failure 15% 20% 95%

Wiring - Disconnected, Short Circuit 5% 0% 70%

Actuator - short circuit, overload 30% 0% 60-90%

Sensors - Mechanical, Disconnected 45% 0% 10%

Total 100% 8% 45-54%

Characteristics of Discrete I/O Modules

GE provides various discrete I/O modules that support different voltage ranges and types. Current capacity and isolation

Separate types to meet the different needs of users

The input and output on most blocks are configurable, with densities of 8 points, 16 points, and 32 points, respectively

The module can be installed at any distance within 7500 feet (2275 meters) from the controller (PLC and PC)

place

• It is possible to mix input and output on one block. For example, a 16 circuit input/output can be configured to 4

Input and 12 outputs - maximizing the utilization of available points

AC/DC Discrete Module Characteristics

Module Model Description User

manual

Number of operating voltage circuits

And the number of groups

Diagnostic input noise

Response time

Loop transmission

Current output

Module input

Current output 1)

IC660BBD110 115VAC input GEK-

90486-2

93-132VAC 16 input

8 circuits/2 groups

Fault switch

open circuit

1ms N/A N/A

IC660BBD101 115VAC Group I/O Module GEK-

90486-2

93-132VAC 8 configurable I/O points (input)/

Three state input/output

8 circuits/group

Over temperature

Input open circuit (three states)

Output short circuit

No output load

over load

Fault switch

2ms 2A RMS 15A @ 35℃

7.5A @ 60℃

IC660BBS102

IC660BBS103

115VAC/125VDC

Isolation I/O module (BBS103)

No fault switch diagnostic function)

GEK-

90486-2

93-132VAC/

105-132VDC

8 configurable I/O points (input)/

Three state input/output

2 circuits/4 groups

Over temperature

Input open circuit (three states)

Output short circuit

No output load

over load

Fault switch

I/O power loss

AC:2ms

DC:0.8ms

2A resistive

1A Sensory

15A @ 35℃

7.5A @ 60℃

C660BBD020

IC660BBD021

IC660BBD022

IC660BBD023

16 circuit DC voltage

I/O module

Positive Logic (BBD020/022)

Negative Logic (BBD021/023)

GEK-

90486-2

24/48VDC

(BBD020/021)

24VDC

(BBD022/023)

16 configurable I/O points (input)

/Output)

16 circuits/1 set

Over temperature

Input open circuit (three states)

Output short circuit

No output load

over load

Fault switch

1.7ms 2A 15A @ 35℃

IC660BBD024

IC660BBD025

32 circuit DC voltage

I/O module 12/24VDC

Positive Logic (BBD024)

5/12/24VDC TTL

Negative Logic (BBD025)

GEK-

90486-2

10-30VDC

(12/24VDC)

4.9-5.3VDC

(5VDC)

32 configurable I/O points,

32 circuits/1 set

Output short circuit

Fault switch

1.4ms 0.5A 16A

IC660BBR100

IC660BBR101

115/230VAC 16

Circuit relay output module

Normally closed (BBR100)

Normally open (BBR101)

GEK-

90486-2

93-132VAC

185-265VAC

16 relay output

4 circuits/4 groups

Each group can use independent

AC or DC power supply)

Internal EEPROM

fault

N/A 2A/Loop N/A


Characteristics of Analog I/O Modules

• Designed for controlling parameters such as flow rate, temperature, and pressure

All modules are configured using software and can be installed on distance controllers (PLC and PC) 7500

Within feet (2275 meters)

Analog signals can be mixed onto a single module. For example, -10 can be configured on a module

To fully utilize the module's circuits of+10VDC, 4 to 20mA, and 0 to 5VDC

Characteristics of analog module

Module Model Description User Manual Operating Voltage Channel Number Diagnostic Accuracy (Typical) Resolution

IC660BBA020 Voltage/Current Analog I/

O24/48VDC

GEK-90486-2 18-56VDC 6 configurable channels

(4 inputs/2 outputs)

(Signal: 0-10V,

±10VDC,±5VDC,

0-5VDC,4-20mA)

Input low/high alarm open circuit

Input out of range

Output out of range

± 0.2% full range 12 bits+sign bit

IC660BBA100 Voltage/Current Analog I/O

115VAC

GEK-90486-2 93-132VAC 6 configurable channels

(4 inputs/2 outputs)

(Signal: 0-10V,

±10VDC,±5VDC,

0-5VDC,4-20mA)

Input low/high alarm open circuit

Input out of range

Output out of range

± 0.2% full range 12 bits+sign bit

IC660BBA024 current source analog I/O

24/48VDC

GEK-90486-2 18-56VDC 4 inputs/2 outputs

All channels 4-20mA

Input low/high alarm open circuit

Input out of range

Output out of range

Output feedback fault

± 0.1% full-scale input: 1 µ A

Output: 6 µ A

IC660BBA104 current source analog I/O

115VAC/125VDC

GEK-90486-2 93-132VAC

105-145VDC

4 inputs/2 outputs

All channels 4-20mA

Input low/high alarm open circuit

Input out of range

Output out of range

Output feedback fault

± 0.1% full-scale input: 1 µ A

Output: 6 µ A

IC660BBA026 current source analog input

24/48VDC

GEK-90486-2 18-56VDC 6-Input

All channels 4-20mA

Input low/high alarm open circuit

Input out of range

± 0.1% full range 1 µ A

IC660BBA106 current source analog input

115VAC/125VDC

GEK-90486-2 93-132VAC

105-145VDC

6 inputs

All channels 4-20mA

Input low/high alarm open circuit

Input out of range

± 0.1% full range 1 µ A

IC660BBA025 current source analog output

24/48VDC

GEK-90486-2 18-56VDC 6 Output

Channel 1-4: 4-20mA

Channel 5-6: 4-20mA

Or 0-5VDC

Output out of range

Output feedback fault

± 0.15% full range 6 µ A

IC660BBA105 current source analog output

115VAC/125VDC

GEK-90486-2 93-132VAC

105-145VDC

6 outputs

Channel 1-4: 4-20mA

Channel 5-6: 4-20mA

Or 0-5VDC

Output out of range

Output feedback fault

± 0.15% full range 6 µ A

Characteristics of temperature analog module

Module Model Description User Manual Operating Voltage Channel Number Diagnostic Accuracy (Typical) Resolution

IC660BBA021 RTD input

24/48VDC

GEK-90486-2 18-56 VDC 6 RTD channels

(Platinum, nickel, copper)

Input low/high alarm open circuit

Input out of range

Wiring malfunction

Input short circuit

internal fault

0.5%(Pt/Ni)

5 ℃ (10 ohm Cu)

0.1℃

IC660BBA101 RTD input

115VAC/125VDC

GEK-90486-2 93-132 VAC

105-145VDC

6 RTD channels

(Platinum, nickel, copper)

Input low/high alarm open circuit

Input out of range

Wiring malfunction

Input short circuit

internal fault

0.5%(Pt/Ni)

5 ℃ (10 ohm Cu)

0.1℃

IC660BBA023 thermocouple input

24/48VDC

GEK-90486-2 18-56VDC 6 thermocouple channels

Types: J, K, T, E

B、R、S、N

Input low/high alarm open circuit

Input out of range

internal fault

N/A <±0.01℃

IC660BBA103 thermocouple input

115VAC/125VDC

GEK-90486-2 93-132VAC

105-145VDC

6 thermocouple channels

Types: J, K, T, E

B、R、S、N

Input low/high alarm open circuit

Input out of range

internal fault

N/A <±0.01℃

  • SIGMATEK DIAS Drive 310-23 servo amplifier
  • SIGMATEK CCP 521 C-DIAS processor module
  • MEGMEET L6 series electric drive
  • Sysmex XN-1000/XN-2000 Hematology Analyzer
  • Sysmex XN-L series (XN-530/XN-430/XN-330) fully automatic blood cell analyzer
  • Sysmex XN-9000 Series Fully Automated Blood Analysis Pipeline
  • LTI‑Motion ServoOne Field Bus Systems PROFIBUS and PROFINET
  • Micro Innovation MICRO PANEL GF1 Color Touch Human Computer Interface
  • Micro Innovation WINbloc Distributed Remote I/O System
  • Micro Innovation MICRO PANEL GS-2 Industrial Touch Visualization Operation Panel (HMI)
  • LTi LST/LSH series synchronous servo motor
  • LTi CDE/CDB3000 positioning controller
  • ENOTEC SILOTEC ® Installation and Operation Instructions for 8000 Silo Monitoring O ₂/CO ₑ Analyzer System
  • ENOTEC ENSITU ® 7000 Compact Oxygen Transmitter Probe
  • ENOTEC COMTEC ® Installation and Operation Instructions for 6000 ATEX GasEx Explosion proof O ₂/COE Analyzer System
  • ENOTEC Integrated Products
  • ENOTEC OXITEC ® 500E Extraction Oxygen Analyzer
  • KUKA KR CS Box-2 Compact Controller for Four Axis SCARA Robot
  • KUKA KR C5 slim-2 Robot Controller
  • KUKA KR C5 micro With KUKA System Software (KSS/VSS) Assembly Instructions
  • KUKA KR C5 micro controller
  • KUKA KR C5 Controller Assembly Instructions
  • KUKA KR C5 compactcab and KR C5 small-size cab cabinets
  • KUKA KR C4 smallsize-2 small robot control cabinet
  • KUKA KR C4 Midsize/KR C4 Midsize CK Assembly Manual
  • ENOTEC ® Installation and Operation Instructions for 5000/5000+Oxygen Analyzer System
  • KUKA KR C4 extended; KR C4 extended CK Assembly Instructions Assembly Manual
  • Assembly/Installation Manual for KUKA KR C4 Compact Control Cabinet
  • KUKA Sunrise Cabinet Med Medical Collaborative Robot Special Control Cabinet
  • KUKA Sunrise Cabinet Next Generation Small Control Cabinet
  • KUKA KR C4 Smallsize-2 family's smallest control cabinet
  • KUKA KR C4 midsize; KR C4 midsize CK medium-sized control cabinet
  • KUKA KR C4 extended is a high-power multi axis control cabinet
  • General installation and operation instructions for KUKA KR C4 and KR C4 CK controllers
  • KUKA KR C4 compact controller operation instructions
  • Installation and Operation Instructions for KUKA Robot Arm
  • KUKA TITAN-2 Ultra Ground Overloading Six Axis Robot
  • Assembly instructions for KUKA KR SCARA-2 CS series robotic arm body
  • KUKA MA KR SCARA X Installation Guide
  • KUKA KR FORTEC-2 Ultra Heavy duty Ground Six Axis Robot Mechanical Assembly Manual
  • KUKA KR FORTEC-2 new generation heavy-duty ground six axis robot
  • KUKA Robots KR 1000 titan; KR 1000 L750 titan With F Variants Assembly Instructions
  • KUKA KR 600 FORTEC heavy-duty six axis ground mounted industrial robot
  • KUKA KR 500 MT FORTEC Heavy duty Six Axis Industrial Robot
  • KUKA KR 360 FORTEC Heavy duty Six Axis Industrial Robot
  • KUKA Sunrise Cabinet Med Medical Edition Robot Controller User Manual
  • KUKA Robots KR SCARA HO Assembly Instructions
  • KUKA Robots KR QUANTEC-2 PA Assembly Instructions
  • KUKA Robots KR QUANTEC-2 K and KR QUANTEC-2 P With K-F and P-C Variants Assembly Instructions
  • KUKA Robots KR QUANTEC-2 HO Assembly Instructions
  • KUKA Robots KR QUANTEC-2 HC Assembly Instructions
  • KUKA KR QUANTEC-2 series heavy-duty ground mounted six axis industrial robot
  • KUKA KR QUANTEC PA series heavy-duty palletizing robot
  • KUKA KR IONTEC-2 series six axis industrial robot
  • KUKA KR IONTEC ultra series six axis heavy-duty industrial robot
  • KUKA KR IONTEC HO Robot Assembly Manual
  • KUKA Robots KR CYBERTECH-3 HW Assembly Instructions
  • KUKA Robots KR CYBERTECH-3 Assembly Instructions
  • KUKA Robots KR CYBERTECH-2 arc Assembly Instructions
  • KUKA Robots KR CYBERTECH nano-2 Assembly Instructions
  • KUKA KR CYBERTECH CR HO (KR   20   R1810-HO) assembly instructions
  • KUKA Robots KR CYBERTECH With F variant Assembly Instructions
  • KUKA KR CYBERTECH CR (KR 20 R1810-CR) Clean Room (CR) Version 6-Axis Industrial Robot
  • KUKA KR AGILUS-3 ultra series small six axis serial robot
  • KUKA KR 300 R2700-2 C-F Cast Ceiling Mounted 6-Axis Heavy duty Industrial Robot
  • KUKA KR 20 R1820-2 E Six Axis Industrial Robot
  • Assembly instructions for KUKA KR AGILUS-3 small six axis robot
  • KUKA KR AGILUS-2 New Generation Small Six Axis Robot
  • KUKA KR 1000 1300 titan PA; KR 1000 L950 titan PA With F Variants Assembly Instructions
  • KUKA KR 700 PA/KR 700 PA Arctic Installation Guide
  • KUKA KR 18 R1450-3 PP six axis ground mounted industrial robot
  • KUKA 12 SCARA Series 4-axis SCARA Horizontal Joint Robot
  • KUKA KR 4 R600 Small Six Axis Industrial Robot
  • Installation Guide for KUKA KR 3 R540 Small 6-Axis Industrial Robot
  • KUKA LBR iiwa CR Clean 7-Axis Lightweight Collaborative Robot
  • KUKA KR AGILUS sixx series six axis industrial robot operation instructions
  • KUKA 4-axis heavy-duty SCARA horizontal multi joint robot KR 60 R1200 Z400 CS
  • KUKA KR 23 SCARA-2 CS SCARA Horizontal Multi Joint Robot
  • KUKA KR 20 SCARA CS Robot Assembly Instructions
  • KUKA KR 15 DELTA-2 Assembly Manual
  • KUKA KR 13 SCARA-2 CS Assembly Manual
  • KUKA KR 3 D1200 (Standard Delta Robot) Assembly Instructions
  • KUKA KR 3 D1200 HM Assembly Manual
  • KUKA LBR Med 7 R800, LBR Med 14 R820 Medical Edition Robot
  • KUKA Robots LBR iiwa 7 R800, LBR iiwa 14 R820 Operating instructions
  • KUKA LBR iiwa CR (Clean Room Version Robot) Operating Instructions
  • Lauer PCStopline series text operation panel
  • KUKA LBR iisy (MA_LBR_iisy V5) assembly manual
  • KUKA LBR iisy 3 R760 Assembly Manual
  • KUKA LBR iico Collaborative Robot Assembly Manual
  • Lauer LCAstarline (LCA300/LCA320/LCA325) Text Display Screen
  • Lauer PCS950/PCS950c/PCS950e operation console
  • Lauer EPC Series Industrial Embedded Human Computer Integrated PC User Guide
  • Bonfiglioli Precision Planetary Gearbox TIR-STD ENG R07
  • Bonfiglioli ACT/ACU Cold Plate Inverter Installation Instructions
  • Bonfiglioli EM-RES-02 Expansion Module
  • Bonfiglioli EM-RES-01 Expansion Module
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-IO-03 Expansion Module
  • Bonfiglioli EM-IO-02 Expansion Module
  • Bonfiglioli Vectron EM-IO-01 Expansion Module
  • Bonfiglioli F series gearbox
  • Installation, operation, maintenance, and spare parts of Bonfiglioli HF series reducers
  • Installation, Operation, and Maintenance of Bonfiglioli 300-300M Series ATEX Reducer
  • Bonfiglioli R3 series planetary gearbox
  • Bonfiglioli C series inline helical gear explosion-proof reducer
  • Bonfiglioli EM-ENC-05 Expansion Module
  • Bonfiglioli EM-ENC-04 Expansion Module
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli CM-CAN CANopen communication module
  • Bonfiglioli EM-SYS System Bus Expansion Module
  • Bonfiglioli CM-PDP Profibus DP Communication Module
  • Bonfiglioli CM-232/CM-485/CM-485T Modbus Communication Manual
  • Bonfiglioli BMS series precision planetary servo reduction motor
  • Bonfiglioli ACTION series ACT210 (230V), ACT410 (400V) frequency converter operation manual
  • Bonfiglioli ACT series frequency converter
  • Bonfiglioli HDP/HDO series gear unit IOM installation, operation and maintenance instructions
  • Installation, operation, and maintenance of Bonfiglioli 300-300M series reducers
  • Bonfiglioli 300M Modular planetary gearboxe
  • Bonfiglioli 3/H series heavy-duty modular gearbox
  • Bonfiglioli KRG-KCG-KSD hydraulic coupling
  • Bonfiglioli Vectron BTD-BCR servo motor
  • Bonfiglioli BTD-BCR synchronous servo motor
  • Bonfiglioli VF-W series ATEX explosion-proof worm gear reducer
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Installation, operation, maintenance, and spare parts instructions for Bonfiglioli EVOX-CP series helical gear reducers (including ATEX explosion-proof models)
  • Installation, operation, and maintenance IOM instructions for Bonfiglioli C/A/F/S series gear reducers (including ATEX explosion-proof versions)
