YOKOGAWA FCN/FCJ Autonomous Controller Function

Notation in this document:

• The term “FCN” refers to the module consisting type

autonomous controllers.

• The term “FCN-500” refers to the autonomous

controllers with NFCP501/NFCP502 CPU module.

• The term “FCN-100” refers to the autonomous

controllers with NFCP100 CPU module.

• The term “FCN-RTU” refers to the low power

autonomous controllers with NFCP050 CPU module.

• The term “FCJ” refers to the all-in-one type

autonomous controllers.

High Performance

• Applicable to a variety of processes, from sequence

control processes to analog control processes.

• Intercommunication with other autonomous

controllers or other equipment for inter-linked control

actions, in addition to stand-alone operation.

• Using Versatile Data Server Software (VDS) or

Supervisory Systems (FAST/TOOLS) together allows

a system with enriched operation and monitoring

functions to be built up.

• An FCN/FCJ OPC server for Windows can be used

for accessing the data of an FCN/FCJ from an OPC

(OLE for Process Control) client on a PC.

• Java-enabled — enables users to implement various

applications, including displaying images on a Web

browser, saving data files, transferring files using the

FTP protocol, sending/receiving e-mails and public

network connection using the PPP protocol.

With InfoWell, applications such as web browsers

and e-mail communications can be utilized without

programming.

l High Reliability

• RAS features (CPU self-diagnostics, temperature

monitoring, I/O diagnostics, and more)

• Memory with error-correcting code (ECC)

• Low heat dissipation, eliminating the need for a

cooling fan

• The Ethernet control network, CPU, power supply

module, and SB bus (FCN local bus) can all be

duplexed for an FCN-100.

• The control network can be duplexed for an FCJ.

l Engineering Efficiency

• Five IEC 61131-3 compliant programming languages

are supported, enabling the user to selectively use

these languages according to their purposes of use

and applications.

• Control logic can be encapsulated into software

parts for reuse, allowing efficient and quality system

configuration.

• Application Portfolios packed with Yokogawa’s

application expertise, enable easy implementation of

advanced functions, including control-loop instrument

blocks and communication with non-Yokogawa PLCs.

l Easy Maintenance

• Online download function allows a control application

to be modified during system operation

• All modules are hot-swappable with an F

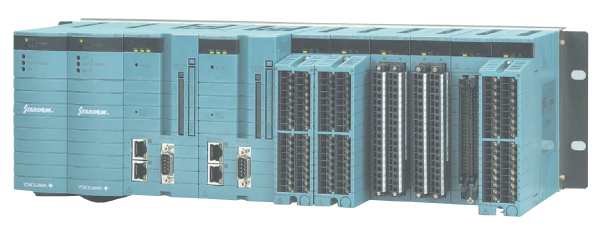

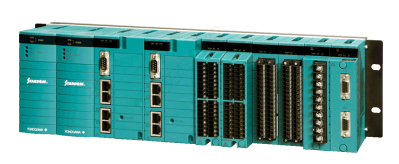

FCN-100 is a controller module consisting of CPU, I/O,

and other modules as necessary. It supports a variety

of I/O modules, provides a highly reliable system with

duplexed power supply, CPU and control network

options as well as superb scalability.

For hardware details, refer to FCN Autonomous

Controller Hardware (FCN-100), GS 34P02Q12-01E

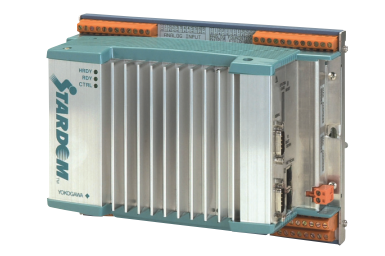

FCJ is an all-in-one controller with a built-in I/O

interface — ideal for installing inside machine

equipment as well as configuring a distributed system.

Its control network can be duplexed.

For hardware details, refer to FCJ Autonomous

Controller Hardware, GS 34P02Q11-01E

System Configurations Resource Configurator is a tool program to be installed

Both FCN and FCJ are locally mounted controllers to

allow diverse systems to be configured according to

in the computer used for maintenance, and is used to

make the FCN/FCJ hardware settings.

the individual users’ work sites; however, the possible The user can access FCN and FCJs via a Web browser

system configurations can be broadly divided into three from a PC to make detailed settings for the network

types: and so on, and to perform maintenance operations

• A system consisting of a standalone FCN or FCJ such as database backup and restoration.

• A system in which FCNs and/or FCJs are connected Logic Designer is a tool program for the development

to each other through the control network and of control applications for an FCN/FCJ. Logic Designer

perform interlinked actions (up to a total of 15 FCNs requires a license to run.

and FCJs can intercommunicate with one FCN/FCJ). These tool programs are supplied on a DVD-ROM. • A system in which one or more FCNs and/or FCJs

are interlinked with VDS, FCN/FCJ OPC Server or

FAST/TOOLS (up to a total of 4 VDSs, FCN/FCJ  SPECIFICATIONS

OPC Servers and FAST/TOOLS can be connected).

l CPU Function Specifications

Using a communication portfolio within an Application Execution Speed:

Portfolio allows an FCN/FCJ to communicate with other Approx. 50 µs per kilosteps in an IL

kinds of controllers and devices. program

Number of Control Applications: Max. 16 tasks

Control network (Ethernet) Task Priority: Can be specified (in 16 levels)

Data

Data communication

Data

Task Execution Cycle:

10 ms or longer (by 10 msec. increments) communication communication

l CPU Memory Capacity

Control Application Capacity:

Max. 3 MB (approx. 400 kilosteps in an IL

program)

Data Area (*1): Max. 8 MB

Retained Data Area (*2): Max. 410 KB (*3)

Java Application Capacity: Max. 32 MB

*1: The data is not retained when the power is off.

*2:  The data is retained even if the power is off. The
