The module can be directly connected to the Profibus DP bus, which provides switch inputs for connecting PNP3 line sensors.
Each input has a short-circuit protection function, with a yellow and a red LED indicating ON or overload status.
GE FANUC IC676PBI016 Switching input module
The module is encapsulated with epoxy resin and uses metal connectors, making it very sturdy.

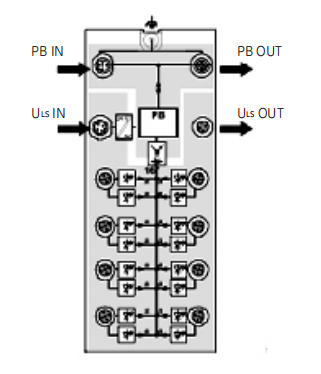

The module is connected to the Profibus DP bus through an M12 connector. One green and one red indicator light indicate the online/offline status of the module, and the module supports up to
The communication rate of the module automatically matches the communication rate of the main station at 12Mbps. The module address can be set through two rotary switches, which can be set
From 0 to 99.
The power supply is connected through a 4-pin M12 connector. The green power LED indicates that the module is powered normally.
In order to configure the module software, a GSD file is attached to the module.
Recommended cable connectors:
Profibus：IC676ACC004、IC676ACC005
Characteristics of switch input module
The input of the switch quantity is used to connect the PNP 3-wire sensor
• Input short-circuit protection function
Automatic detection of communication speed
M12 connectors are used for bus and input connections
M12 connector is used for power connection
Compliant with NEMA4, VDE0106 standards and IEC protection level IP67
• Maximum communication speed of 12 Mbps
Order number description points
IC676PBI016 24VDC positive logic input 16
Input module characteristics
IC676PBI016
16 inputs, DC
Supply voltage
Module power supply 18-30 VDC
Internal current consumption<100 mA (from bus power supply)
Input circuit (16) PNP 3-wire sensor
Input voltage 24 VDC standard
Input current of 5 mA per channel, short circuit protection
Input delay ON: 3.1 ms
OFF：4.1 ms
Connector
Auxiliary power supply 4-pin M12 connector
Bus M12 connector, anti loosening
Input M12 connector
set up
Address 0-99 (decimal) is controlled by two rotary switches
LED indicator
Bus green/red: normal operation/no communication
Power green/red: normal operation/bus power failure
Input status yellow: Input ON
Shell 60 x 160 x 44.5 (W x H x D)
Protection level NEMA4, IP 67
Working temperature -25 ° C to+60 ° C
Working humidity 95%
Switching output module (IP67)
The module can be directly connected to the Profibus DP bus, which provides switch inputs for connecting PNP3 line sensors.
Each input has a short-circuit protection function, with a yellow and a red LED indicating ON or overload status.
The module is encapsulated with epoxy resin and uses metal connectors, making it very sturdy.
The module is connected to the Profibus DP bus through an M12 connector. One green and one red indicator light indicate the online/offline status of the module, and the module supports up to
The communication rate of the module automatically matches the communication rate of the main station at 12Mbps. The module address can be set through two rotary switches, which can be set
From 0 to 99.
The power supply is connected through a 4-pin M12 connector. The green power LED indicates that the module is powered normally.
In order to configure the module software, a GSD file is attached to the module.
Recommended cable connectors:
Profibus：IC676ACC004、IC676ACC005
Characteristics of switch output module
24VDC, maximum load 2.0A switch output
• Output short-circuit protection function
Automatic detection of communication speed
M12 connectors are used for bus and input connections
M12 connector is used for power connection
Compliant with NEMA4, VDE0106 standards and IEC protection level IP67
• Maximum communication speed of 12 Mbps
Order number description points
IC676PBO082 24VDC, 2A output 8
