GE FANUC IC676PBO082 output module

GE FANUC IC676PBO082 output module

IC676PBO082

8 inputs, DC

Supply voltage

Module power supply 18-30 VDC

Internal current consumption

Auxiliary power supply

<100 mA (from bus power supply)

18-30 VDC

Output circuit (8) DC actuator

Output voltage 18-30 VDC

Output current 2.0A per circuit, short circuit protection

Switching frequency<500 Hz

Connector

Auxiliary power supply 4-pin M12 connector

Bus M12 connector, anti loosening

Input M12 connector

set up

Address 0-99 (decimal) is controlled by two rotary switches

LED indicator

Bus green/red: normal operation/no communication

Power green/red: normal operation/bus power failure

Output status yellow: Output ON

Shell 60 x 178 x 49.3 (W x H x D)

Protection level NEMA4, IP 67

Working temperature -25 ° C to+60 ° C

Working humidity 95%

Hybrid switch module (IP67)

The module can be directly connected to the Profibus DP bus for connecting switch inputs and driving switch actuators.

Both input and output have short-circuit protection function. Each input channel indicates ON or short-circuit status through a yellow and a red LED, and each output is connected

There is a green/red dual color LED indicating ON or short circuit status.

The module is encapsulated with epoxy resin and uses metal connectors, making it very sturdy.

The module is connected to the Profibus DP bus through an M12 connector. One green and one red indicator light indicate the online/offline status of the module, and the module supports up to

The communication rate of the module automatically matches the communication rate of the main station at 12Mbps. The module address can be set through two rotary switches, which can be set

From 0 to 99.

The power supply is connected through a 4-pin M12 connector. The green power LED indicates that the module is powered normally.

In order to configure the module software, a GSD file is attached to the module.

Recommended cable connectors:

Profibus：IC676ACC004、IC676ACC005

Characteristics of switch mixed module

The input of the switch quantity is used to connect the PNP3 line sensor

24VDC, maximum load 2.0A switch output

• Input and output short-circuit protection function

Automatic detection of communication speed

M12 connectors are used for bus and input/output connections

M12 connector is used for connecting bus power supply and auxiliary power supply

Compliant with NEMA4, VDE0106 standards and IEC protection level IP67

• Maximum communication speed of 12 Mbps

Characteristics of switch mixed module

IC676PBM442

DC 4 inputs/4 outputs

Supply voltage

Bus power supply 18-30 VDC

Internal current consumption

Auxiliary power supply

<100 mA (from bus power supply)

18- 30 VDC

Input circuit (4) PNP 3-wire sensor

Input voltage 18-30 VDC (from bus power supply)

Input current of 5 mA per channel, short circuit protection

Input delay ON: 3.1 ms

OFF：4.1 ms

Output circuit (4) DC actuator

Output voltage 18-30 VDC

Output current 2.0A per circuit, short circuit protection

Switching frequency<500 Hz

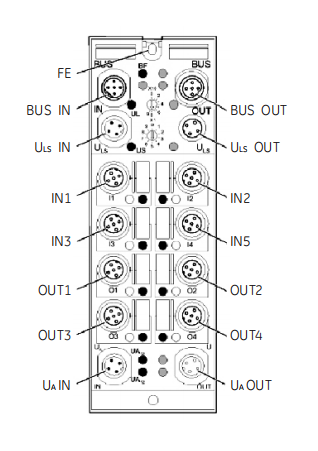

Connector

Bus and auxiliary power supply

Bus

input

4-pin M12 connector

M12 connector, anti loosening

M12 connector

set up

Address 0-99 (decimal) can be accessed through two rotary switches located under the protective cap

LED indicator

Bus green/red: normal operation/no communication

Power Supply

Input status

Green/Red: Normal operation/Bus power failure

Yellow/Red: Input ON/Short Circuit

Output status yellow/red: Output ON/short circuit

Shell 60 x 178 x 49.3 (W x H x D)

Protection level NEMA 4 and IEC IP 67

Working temperature: 0 ° C to+55 ° C (32 ° C to+131 ° F)
