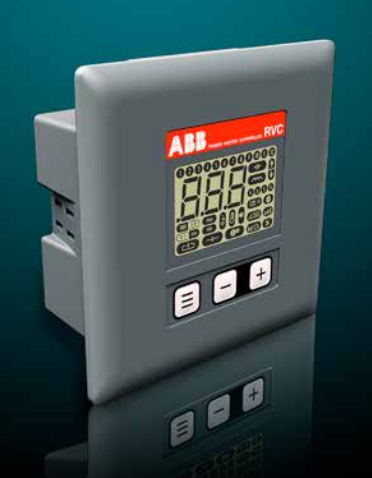

ABB Power Factor Controller RVC
Power Factor controller RVC
Powerful features
•Common range for a broad network voltages from 100V to
440V.
• Measurement and display of key parameters like voltage,
current, power factor, THDV and THDI.
•Fully programmable switching sequence.
•1A or 5A current input.
•Easy commissioning.
•Complete auto set-up (starting current-C/k, type of switching
sequence, phase shift, special connections).
•Easy to use thanks to a user-friendly interface and ease of
access to parameters for manual setting.
•Highly efficient switching strategy combining integral, direct and
circular switching thereby allowing:
• to control the cos j in presence of rapidly varying loads,
• to reduce the number of switching,
• to avoid unnecessary intermediary switchings,
• to increase the lifetime of the capacitors and contactors.
•Suitable for hot environments due to maximum ambient
temperature rating of 70°C.
•Not affected by harmonics.
•Overvoltage / undervoltage protection and protections against
harmonic distortion (THDV).
•Alarm : an alarm contact is opened when any of these
conditions are reached:
• the target cos j is not reached within 6 minutes after all
outputs have been switched on,
• the internal temperature of the RVC rises above 85°C,
• overvoltage / undervoltage limits are reached,
• the power supply is out of range,
• the THDV exceeds the limits.
RVC has become synonymous with automatic capacitor
bank controller in many markets worldwide thanks to
its distinct design, ease of use, reliability and versatile
functions.
Thanks to the user interface upgrade with graphical icons, it is
possible to commission the RVC without a manual. A slimmer casing
requires less space in the capacitor bank panel.
The RVC is an easy-to-install, easy to use, smarter power factor con troller and an ideal companion of your automatic capacitor banks.

Measuring system Micro-processor system for balanced three-phase networks or single-phase networks.
Operating voltage 100V to 440V.
Voltage tolerance +/- 10% on indicated operating voltages.
Frequency range 50 or 60 Hz +/- 5% (automatic adjustment to network frequency).
Measuring circuit terminals (L2, L3 and k, I) CAT III rated.
Current input 1A or 5A (RMS).
Current input impedance <0.1 Ohm (recommended CT class 1.0, 10 VA min).
Consumption of the controller 8 VA max.
Output contact rating max. continuous current: 1.5A;
max. peak current: 5 A;
max. voltage: 440Vac;
terminal A is rated for a continuous current of 16A.
Alarm contact normally open contact;
max. continuous current: 5 A;
rated/max. breaking voltage: 250Vac/440 Vac.
Power Factor setting From 0.7 inductive to 0.7 capacitive.
Starting current setting (C/k) 0.01 to 3A.
automatic measurment of C/k.
Number of outputs RVC-3: programmable up to 3 outputs - RVC-6: programmable up to 6 outputs
RVC-8: programmable up to 8 outputs - RVC-10: programmable up to 10 outputs
RVC-12: programmable up to 12 outputs
Switching time between steps Programmable from 1s to 999s (independent of reactive load).
Switching sequences User defined.
Mode of switching The mode of switching for all the programmable switching sequences is integral, direct, circular or linear.
Saving-function All programmed parameters and modes are saved in a non-volatile memory.
Power outage release Quick automatic disconnection in less than 20ms (50Hz) in case of power outage or voltage drop.
Power outage reset delay time 40 s.
Operating temperature -10° C to 70° C.
Storage temperature - 30° C to 85° C.
Mounting position Vertical panel mounting.
Dimensions 144x144x43 mm (hxwxd).
Cut-out dimensions 138x138 mm (hxw).
Weight 0.4 kg (unpacked).
Connector Spring clamp terminal block.
Front plate protection IP43.
Relative humidity Maximum 95%, non-condensing.
Article numbers for ordering RVC-3: 2GCA294983A0050
RVC-6: 2GCA294984A0050
RVC-8: 2GCA294985A0050
RVC-10: 2GCA294986A0050
RVC-12: 2GCA294987A0050
Other features Overvoltage and undervoltage protection.
Autoadaptation to the phase-rotation of the network and the CT-terminals.
Not affected by harmonics.
Working with generative and regenerative loads.
LCD contrast automatically compensated with temperature.
Standards CE marked.
