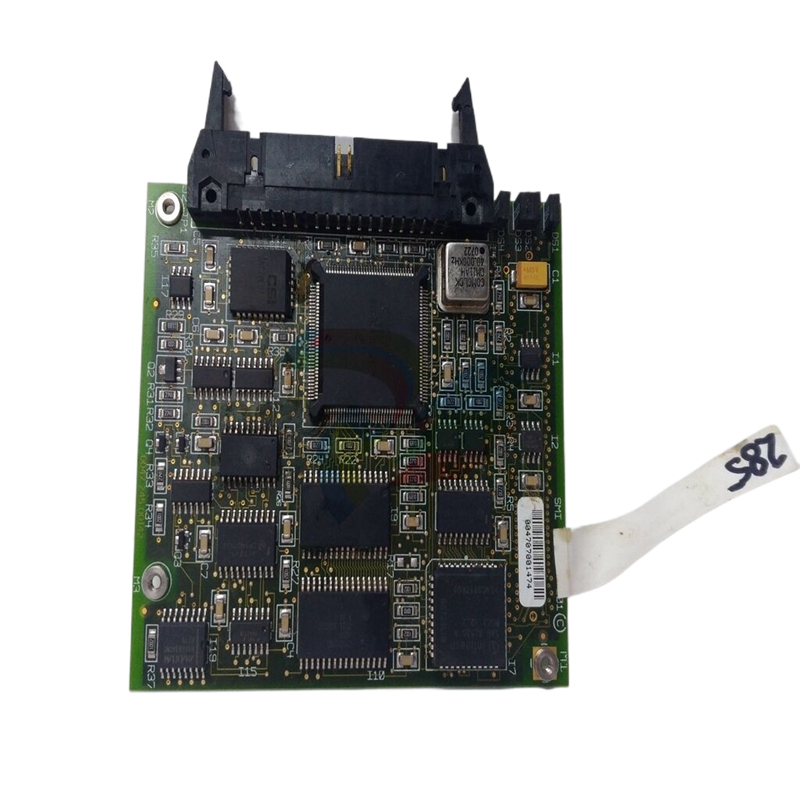

ABB SPDSI22 Digital Input Module

ABB SPDSI22 Digital Input Module

Basic Information

Product Model:SPDSI22.

Place of origin: generally Sweden or China, etc., may vary from batch to batch or sales channel to sales channel.

Manufacturer: ABB.

Characteristics

High-precision signal measurement: It can accurately measure a variety of digital input signals, providing accurate and reliable data support for industrial control systems.

Flexible configuration: can be easily customised to meet the needs of specific applications, users can set the parameters and functions of the module flexibly according to the actual working conditions.

Wide compatibility: compatible with a variety of industrial equipment and systems, easy to integrate with other equipment to build a complete industrial automation control system.

Fast Response Time: With fast real-time data acquisition and analysis capability, it can obtain the changes of input signals in time and process them accordingly to ensure the efficient operation of the system.

Rugged design: Made of durable materials, it can work stably in harsh industrial environments, such as high temperature, humidity, dust and other environmental conditions.

Technical Parameters

Input voltage range: support a wide range of input voltage to meet the signal input requirements of different devices, enhancing the versatility and compatibility of the module.

Input Signal Type: It can accurately measure many types of digital input signals, such as switch signals, pulse signals, etc.

Number of channels: Usually has 16 input channels, can receive multiple digital signals at the same time, to meet the input requirements of complex systems.

Response time: Fast response time ensures the accuracy and timeliness of real-time data acquisition, which varies according to different signal types and settings.

Communication Interface: Equipped with reliable communication interfaces, such as Industrial Ethernet, Profibus, etc., to achieve seamless data transmission with other devices or systems.

Operating temperature range: Can operate effectively within a certain temperature range, generally from - 20℃ to + 60℃, etc., to adapt to different industrial site temperature conditions.

Physical Characteristics

Dimensions: Length 73.66 mm, width 269.24 mm, height 358.14 mm.

Weight: approx. 3 kg.

Fields of application

Industrial automation: Widely used in various industrial automation production lines, to achieve the status monitoring of production equipment, control instructions received and other functions, such as automated assembly lines, packaging lines and so on.

Process control: In the process control system of chemical, petroleum, electric power and other industries, it is used to receive digital signals from various sensors and instruments, such as pressure switch signals, liquid level alarm signals, etc., so as to achieve precise control of the production process.

Device Interface: As an interface module between devices, it facilitates the signal transmission and interaction between different devices and ensures the co-operation of the whole system.

Data Acquisition: It can be used to collect all kinds of digital signal data from the industrial site and transmit them to the control system or host computer for analysis and processing, providing data basis for production decision-making.

Monitoring system: It is suitable for constructing monitoring system of industrial equipment, real-time monitoring of equipment operation status, fault signal, etc., and timely detection of problems and take corresponding measures.
