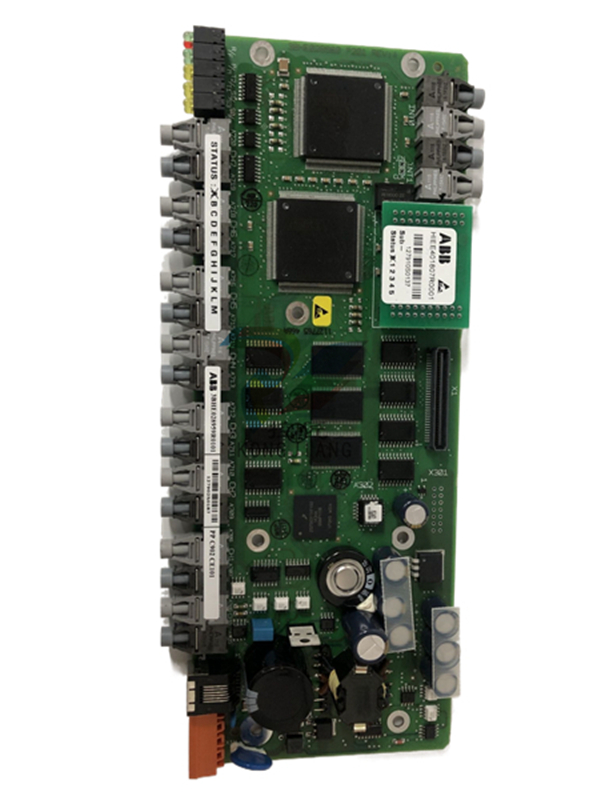

ABB 3BHE032025R0101 PCD235A101 Exciter Control Module
ABB 3BHE032025R0101 PCD235A101 Exciter Control Module
Product Overview
The PCD235A101 excitation control module is a high-performance product designed by ABB for exciter control in power systems, especially in electric power stations and industrial power applications. The module has precise exciter control capability and can be used to regulate the excitation current of generators to ensure power system stability and performance.
Key features
Precise excitation control: The PCD235A101 module provides precise control of the generator's excitation system, adjusting the excitation current to maintain power system stability and performance. This is essential to ensure the stability of the power supply and to adjust the voltage of the power system.
Multiple Communication Interfaces: The module is typically equipped with multiple communication interfaces, including Ethernet and serial communication interfaces, for communication and data transfer with other control and monitoring systems. This helps to enable remote monitoring and control of the power system.
Flexible Configuration Options: The PCD235A101 module has flexible configuration options that can be adapted to different types and sizes of power systems. Users can set parameters and adjust functions to meet specific power system requirements.
Real-time monitoring and fault diagnosis: The module supports real-time monitoring and fault diagnosis functions, enabling timely detection and resolution of problems. This helps to reduce the failure rate of the power system and improve the reliability and stability of the system.
High stability and reliability: ABB's excitation control modules are known for their high stability and reliability for critical power system applications. They are able to operate stably for long periods of time in harsh industrial environments, ensuring the continuity and security of the power system.
Application Areas
PCD235A101 excitation control modules are mainly used in the following areas:
Electric power plants: In electric power plants, the excitation control module is used to control the excitation system of generators to ensure the stability and reliability of power output.
Power Distribution System: In the power distribution system, the module helps to maintain the voltage stability of the power system to ensure the efficiency and safety of power distribution.
Power transmission system: In the power transmission system, the excitation control module is used to control the voltage and current of the transmission line to improve the efficiency and stability of power transmission.
Technical Specifications
Model: PCD235A101
No.: 3BHE032025R0101
Function: excitation control
Communication interface: Ethernet, serial communication interface, etc.
Configuration options: flexible and configurable
Monitoring and diagnostic function: support real-time monitoring and fault diagnosis
Precautions
When installing and using the PCD235A101 excitation control module, make sure that it is compatible with the rest of the system and is properly connected and configured.
Regularly inspect and maintain the module to ensure its long-term stable operation. This includes checking the connecting cables, cleaning the module surface, and updating the software.
In the event of malfunction or problem, you should contact ABB's technical support or professional maintenance personnel to handle the problem. They can provide professional technical support and solutions to ensure the normal operation of the power system.
Instructions and warnings related to the operation of the product:
The following specifications must be strictly observed:
The technical specifications and typical applications of the product system must be strictly observed.
PERSONNEL TRAINING: Only trained personnel may install, operate, maintain or repair the product system. These personnel must be instructed on the
These personnel must be instructed and briefed on the conditions in the hazardous area.
Unauthorised modifications: No modifications or structural changes may be made to the product system.
Maintenance Responsibility: It must be ensured that the product system is used only under appropriate conditions and in a condition fully suitable for use.
Working environment: The user must fulfil the specified environmental conditions:
Safety regulations
The following safety regulations must be fully observed when (maintenance) work is carried out on the product system:
1 Disconnect completely.
2 Secure to prevent reconnection.
3 Confirm that the installation has been completed.
4 Perform grounding and short-circuiting.
