VersaMax IP does not require additional construction costs
The cabinet can be installed in a NEMA 4 cabinet
Like standard I/O systems, it has robustness and reliability
Sex. The VersaMaxIP rating is IP67, so it can
To fix it directly to the controlled equipment with bolts
Up, no need for encapsulation. For those with integrated plugin interfaces
Modules perform I/O, communication, and power connections, shortening the time required
The design and installation time have reduced the possibility of wiring errors
Ability. Once installed, there are many VersaMax IPs available
The diversified diagnostic function will enable quick completion of troubleshooting.
When the module itself fails, i.e. plug-in type
The wiring interface greatly shortens the replacement time and reduces
The possibility of wiring errors.

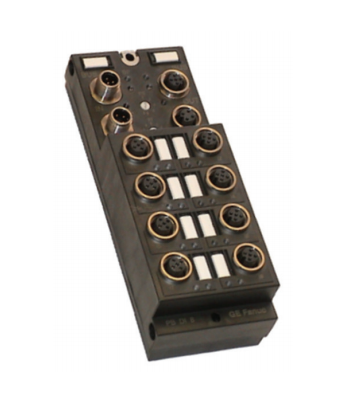

GE IC676ACC001 VersaMax IP Label
VersaMax IP
I/O system that can be directly exposed and installed in oil and water environments
VersaMax IP Integrated Series
VersaMax IP Integrated Series I/O for use in harsh environments
Next, input digital quantities for mechanical and factory automation engineering
Collect and output data. VersaMax IP Integrated Series I/O
It is a compact fieldbus I/O system with input/
Output combination module enables universal sensor and actuator signals
Easy connection.
No need to seal the casing; No need for chassis and DIN rail, every
Each module can serve as an independent I/O station, saving installation time
cost.
The supported bus is Profibus DP.
VersaMax IP Modular Series
VersaMax IP Modular Series I/O and Expansion Flexible
Save system resources and enable increasingly complex I/O functions
Field wiring provides a cost-effective, powerful and modular solution
A modular solution. High performance VersaMax IP local

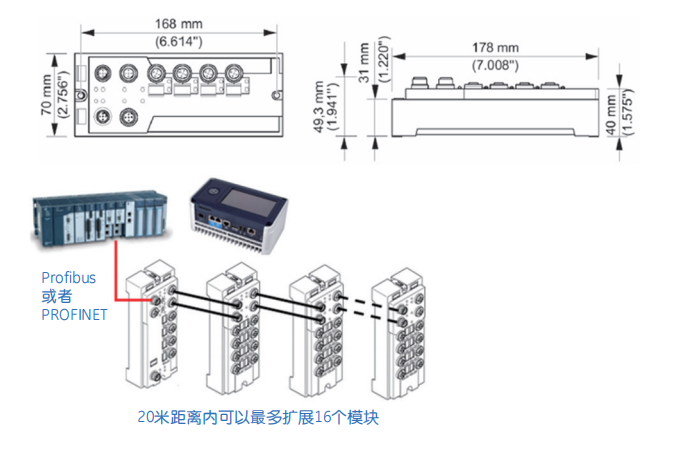

The bus can connect 16 local bus devices, with a distance of up to
20m. Accurate, high-performance, and highly diagnostic, easy to understand
The display and information of the solution reduce the downtime of the bus.
The supported buses are Profinet and Profibus DP.
Integrated series module features
category
model
IC676PB1008
IC676PBI016
IC676PBM442
IC676PBO082
Module power supply
18-30VDC
Supply voltage
Internal current consumption
<100mA (from bus power supply)
Auxiliary power supply
18-30VDC
Input circuit
8 inputs, DC
16 inputs, DC
4-channel input, DC
nothing
input
input voltage
24VDC standard
nothing
Input current
5 mA per channel, short circuit protection
nothing
input delay
ON: 3.1ms; OFF: 4.1ms
nothing
Output circuit
nothing
(4) DC actuator
(8) DC actuator
output
output voltage
nothing
18-30 VDC
Output current
nothing
2.0A, short circuit protection for each circuit
switching frequency
nothing
<500Hz
Auxiliary power supply
4M12 connector
Connector
Bus
M12 connector, anti loosening
input
M12 connector
set up
Bus address
0-99 (decimal) is switched through two rotary knobs
Bus
Green/Red: Normal operation/No communication
Power Supply
Green/Red: Normal operation/Bus power failure
LED indicator
Input status
Yellow: Enter ON
nothing
Output status
nothing
Yellow: Output ON
size
60x160x44.5(WxHxD)
60x178x49.3(WxHxD)
Shell
Protection level
NEMA4、IP67
Operating temperature
-25 * C to+60C
Operating humidity
95%
Ordering information for accessories of integrated series modules
Modular series module features
Category Order Number Description
PROFIBUS DP
enclosure
IC676ACC001 VersaMax IP Label (50)
IC676ACC002 pin protection cover (for unused input/output points)
IC676ACC003 hole type protective cover (for unused input/output points)
IC676ACC004 PROFIBUS DP terminal resistor
IC676ACC005 PROFIBUS DP T-connector
PROFIBUS DP
Connecting cables
IC676CBLPBM020 IP67 Profibus connection cable, 2 meters, pin connector
IC676CBLPBM050 IP67 Profibus connection cable, 5-meter, pin connector
IC676CBLPBM100 IP67 Profibus connection cable, 10 meters, pin connector
IC676CBLPBF020 IP67 Profibus connection cable, 2-meter, hole shaped connector
IC676CBLPBF050 IP67 Profibus connection cable, 5-meter, hole shaped connector
IC676CBLPBF100 IP67 Profibus connection cable, 10 meters, hole shaped connector
IC676CBLPBB003 IP67 Profibus connection cable, 0.3 meters
IC676CBLPBB005 IP67 Profibus connection cable, 0.5 meters
IC676CBLPBB010 IP67 Profibus connection cable, 1 meter
IC676CBLPBB020 IP67 Profibus connection cable, 2 meters
IC676CBLPBB050 IP67 Profibus connection cable, 5 meters
IC676CBLPBB0100 IP67 Profibus connection cable, 10 meters
Power connection cable
IC676CBLPWM020 IP67 power connection cable, 2 meters, pin connector
IC676CBLPWM050 IP67 power connection cable, 5-meter, pin connector
IC676CBLPWM100 IP67 power connection cable, 10 meters, pin connector
IC676CBLPWF020 IP67 power connection cable, 2-meter, hole shaped connector
IC676CBLPWF050 IP67 power connection cable, 5-meter, hole shaped connector
IC676CBLPWF100 IP67 power connection cable, 10 meters, hole shaped connector
IC676CBLPWB003 IP67 power connection cable, 0.3 meters
IC676CBLPWB005 IP67 power connection cable, 0.5 meters
IC676CBLPWB010 IP67 power connection cable, 1 meter
IC676CBLPWB020 IP67 power connection cable, 2 meters
IC676CBLPWB050 IP67 power connection cable, 5 meters
IC676CBLPWB0100 IP67 power connection cable, 10 meters
Category and Model IC677DBI008 IC677DBO085 IC676PBM442 IC677ABI004 IC677ABO004
Power supply voltage module power supply 18-30 VDC
Internal current consumption<50 mA (from bus power supply)
input
Input circuit with 8 digital inputs, no 4 DC inputs, and no 4 DC analog inputs
Input voltage 24 VDC standard none 24 VDC standard none
Input delay ON: 3.1 ms; OFF: 4.1 ms No ON: 3.1 ms; OFF: 4.1 ms None
Connection types: 2-wire, 3-wire, and 4-wire sensors without 2-wire, 3-wire, and 4-wire sensors without 2-wire or 4-wire (shielded)
Voltage range 0 to 10V,+/-10V, 0 to 5V,+/-5V None
Current range 0 to 20mA,+/-20mA, 4 to 20mA None
output
Output circuit without 8-channel transistor output, 4-channel transistor output, and 4-channel analog output
Output voltage: None 18-30 VDC None
Output current not 2.0A per circuit, short circuit protection not available
Switching frequency None 45 Hz None
Connection type without 2-wire, 3-wire actuator without 2-wire or 4-wire (shielded)
Voltage Range None None 0 to 10V,+/-10V, 0 to 5V,+/-5V
Current range: 0 to 20mA, 4 to 20mA
Local bus speed 500Kbaud/2Mbaud
Shell
Size 70x178x49.3 (WxHxD)
Protection level NEMA4, IP 67
Operating temperature -25 ° C to+60 ° C
Operating humidity of 95%
Category and Model IC677PBI001 IC677PNS001
Power supply voltage module power supply 18-30 VDC
Internal current consumption<100 mA 118mA (with local extension)
Integrated input
8 input circuits, 8 DC inputs, DC
Input voltage 24 VDC standard
Input current 5 mA
Input delay On: 2.9 ms Off: 2.6ms
communication
Communication protocol Profibus DP PROFINET IO
Maximum communication speed of 12Mbaud and 100 Mbits
244 bytes of data input and 244 bytes of data output
The maximum number of expansion modules is 16
Shell
Size 70x178x49.3 (WxHxD)
Protection level NEMA4, IP 67
Operating temperature -25 ° C to+60 ° C
Operating humidity of 95%
Category Order Number Description
enclosure
IC677CBLLBB0013 IP67 local bus connection communication cable, 13.5 meters
IC677CBLPWB0013 IP67 local bus connection power cable, 13.5 meters
IC677CBLY006 IP67 sensor/actuator, connecting cable 0.6 meters
IC677YCNTR003 IP67Y distributor, M12
IC676PBI008 IC676PBI016
IC676PBM422 IC676PBOO82
IC677PBI001，IC677PNS001，IC677DBI008，IC677DBO085，IC676PBM442，
IC677ABI004，IC677ABO004
