GE IC754CSF12CTD Controllers

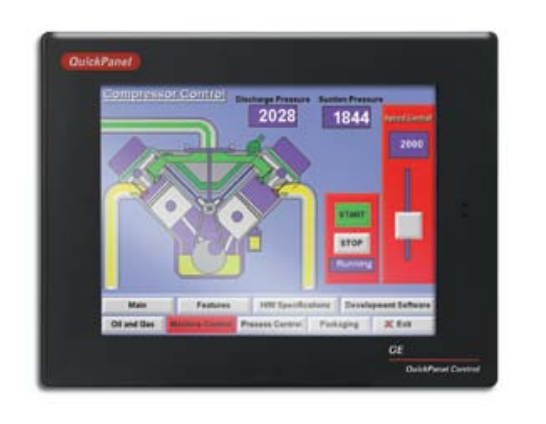

QuickPanel Control Operator InterfacesQuickPanel Control combines control and visualization into one platform for maximum
productivity and cost efficiency. By integrating the QuickPanel Control family of touch
screens with Proficy Machine Edition software, QuickPanel Control delivers flexible, scalable
performance on a rugged hardware platform. The intuitive environment of Proficy Logic
Developer - Machine Edition Control and Proficy View - Machine Edition software helps
reduce application development time, and connectivity is made easy with a family of
Ethernet and Fieldbus interfaces.
Controllers
IC754CSF12CTD IC754CSF15CTD IC754CBF15CTD
Product Name QuickPanel Control Display,
12” TFT-Color Loaded
QuickPanel Control Display,
15” TFT-Color Loaded
QuickPanel Control Display,
15” TFT-Color Loaded
Lifecycle Status Active Active Active
Display Size 12.1 inch (Diagonal) 15.1 inch (Diagonal) 15.1 inch (Diagonal)
Display Type TFT TFT TFT
Resolution 800 x 600 pixels 1024 x 768 pixels 1024 x 768 pixels
Memory: DRAM 64 MB 64 MB 64 MB
Memory: Expandable to 96 MB or 128 MB to 96 MB or 128 MB to 96 MB or 128 MB
Serial: Com #1 RS232/RS485 RS232/RS485 RS232/RS485
Serial: Com #2 RS232 RS232 RS232
Ethernet: LAN #1 10/100 Mbps 10/100 Mbps 10/100 Mbps
Ethernet: LAN #2 10/100 Mbps 10/100 Mbps 10/100 Mbps
Communication Expansion
GE Series 90-30 I/O,
VersaMax Expansion I/O,
VersaMax Micro Expansion I/O,
Genius I/O, DeviceNet Master,
and PROFIBUS Master
GE Series 90-30 I/O,
VersaMax Expansion I/O,
VersaMax Micro Expansion I/O,
Genius I/O, DeviceNet Master,
and PROFIBUS Master
GE Series 90-30 I/O,
VersaMax Expansion I/O,
VersaMax Micro Expansion I/O,
Genius I/O, DeviceNet Master,
and PROFIBUS Master
Compact Flash One, Type 2 One, Type 2 One, Type 2
Agency Approvals UL/cUL-Class 1 Div 2 (A, B, C, D);
ATEX-Class 1 Zone 2; CE Mark
UL/cUL-Class 1 Div 2 (A, B, C, D);
ATEX-Class 1 Zone 2; CE Mark
UL/cUL-Class 1 Div 2 (A, B, C, D);
ATEX-Class 1 Zone 2; CE Mark
Environmental Rating
NEMA 4/4X,
IP65 when properly mounted
in an IP65 rated enclosure
NEMA 4/4X,
IP65 when properly mounted
in an IP65 rated enclosure
NEMA 4/4X,
IP65 when properly mounted
in an IP65 rated enclosure
Panel Cut-Out (W x H x D) 11.88” x 8.96” x 2.37”
(302mm x 228mm x 60mm)
14.93” x 12.03” x 2.78”
(379mm x 305mm x 71mm)
14.93” x 12.03” x 2.78”
(379mm x 305mm x 71mm)
Front of Panel and Depth (W x H x D) 13.26” x 10.34” x 0.38”
(337mm x 263mm x 10mm)
15.70” x 12.73” x 0.40”
(399mm x 323mm x 10mm)
15.70” x 12.73” x 0.40”
(399mm x 323mm x 10mm)
Input Voltage 12 VDC @ ±20% or 24 VDC @ ±20% 12 VDC @ ±20% or 24 VDC @ ±20% 12 VDC @ ±20% or 24 VDC @ ±20%
Power Less than 48 W Less than 60 W Less than 60 W
Operating Temperature 0 to 50°C
(32 to 122°F)
0 to 50°C
(32 to 122°F)
0 to 50°C
(32 to 122°F)
Storage Temperature
-20 to 70°C
(-4 to 158°F)
-20 to 70°C
(-4 to 158°F)
-20 to 70°C
(-4 to 158°F)
Operating Humidity 10 - 85% non-condensing 10 - 85% non-condensing 10 - 85% non-condensing
Indicators - LEDs 2 Bi-color, 2 on
Ethernet Connector
2 Bi-color, 2 on
Ethernet Connector
2 Bi-color, 2 on
Ethernet Connector
