GE IC800VMM01LNKSE25 Servo Amplifiers
Servo Amplifiers Motion Control Systems
VersaMotion
Ordering Information
VersaMotion VersaMotion VersaMotion VersaMotion
Model 100 Watt 200 Watt 400 Watt 750 Watt

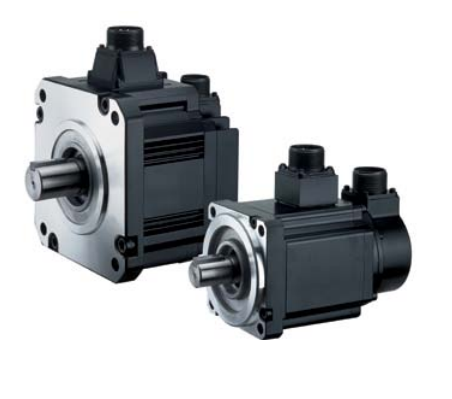

Motor Part Number IC800VMM01LNKSE25 IC800VMM02LNKSE25 IC800VMM04LNKSE25 IC800VMM07LNKSE25
Motor/Brake Part Number N/A IC800VMM02LBKSE25 IC800VMM04LBKSE25 IC800VMM07LBKSE25
Amplifier Part Number IC800VMA012 IC800VMA022 IC800VMA042 IC800VMA072
Cables
Power Cable 3 m IC800VMCP030 IC800VMCP030 IC800VMCP030 IC800VMCP030
5 m IC800VMCP050 IC800VMCP050 IC800VMCP050 IC800VMCP050
10 m IC800VMCP100 IC800VMCP100 IC800VMCP100 IC800VMCP100
20 m IC800VMCP200 IC800VMCP200 IC800VMCP200 IC800VMCP200
Brake and Power Cable 3 m N/A IC800VMCB030 IC800VMCB030 IC800VMCB030
5 m N/A IC800VMCB050 IC800VMCB050 IC800VMCB050
10 m N/A IC800VMCB100 IC800VMCB100 IC800VMCB100
20 m N/A IC800VMCB200 IC800VMCB200 IC800VMCB200
Encoder Cable 3 m IC800VMCE030 IC800VMCE030 IC800VMCE030 IC800VMCE030
5 m IC800VMCE050 IC800VMCE050 IC800VMCE050 IC800VMCE050
10 m IC800VMCE100 IC800VMCE100 IC800VMCE100 IC800VMCE100
20 m IC800VMCE200 IC800VMCE200 IC800VMCE200 IC800VMCE200
Communications & I/O Interface Cables
Communications Cable 3 m IC800VMCS030 IC800VMCS030 IC800VMCS030 IC800VMCS030
Flying lead I/O interface Cable 1 m IC800VMCI010 IC800VMCI010 IC800VMCI010 IC800VMCI010
3 m IC800VMCI030 IC800VMCI030 IC800VMCI030 IC800VMCI030
Amplifier Connectors
CN1 I/O Connector (Note 1) IC800VMACONCN1 IC800VMACONCN1 IC800VMACONCN1 IC800VMACONCN1
CN2 Encoder Connector (Note 2) IC800VMACONCN2 IC800VMACONCN2 IC800VMACONCN2 IC800VMACONCN2
CN3 Communication Connector (Note 3) IC800VMACONCN3 IC800VMACONCN3 IC800VMACONCN3 IC800VMACONCN3
AC Power Connector (Note 4) IC800VMACONACP IC800VMACONACP IC800VMACONACP IC800VMACONACP
Motor Power Connector (Note 4) IC800VMACONMTRP IC800VMACONMTRP IC800VMACONMTRP IC800VMACONMTRP
External Braking Resistor Connector (Note 4) IC800VMADBR001 IC800VMADBR001 IC800VMADBR001 IC800VMADBR001
Motor Connectors
Power Connector (motor only) IC800VMMCONP001 IC800VMMCONP001 IC800VMMCONP001 IC800VMMCONP001
Power Connector (motor & brake) N/A IC800VMMCONP002 IC800VMMCONP002 IC800VMMCONP002
Encoder Connector IC800VMMCONE001 IC800VMMCONE001 IC800VMMCONE001 IC800VMMCONE001
Accessories
I/O Terminal Breakout Board and Cable (Note 5) 0.5 m IC800VMTBC005 IC800VMTBC005 IC800VMTBC005 IC800VMTBC005
External Braking Resistor (Note 6) IC800VMBR040 IC800VMBR040 IC800VMBR040 IC800VMBR040
40Ω, 400 Watt
External Braking Resistor (Note 6) IC800VMBR020 IC800VMBR020 IC800VMBR020 IC800VMBR020
20Ω, 1000 Watt
1) The CN1 connector is only required when the I/O breakout terminal board (IC800VMTBC005) or flying lead I/O interface cable (IC800VMCI0xx) are not used for wiring access to the amplifier I/O points.
2) The CN2 encoder connector is part of the separately ordered GE feedback cable. This connector is only required when user will manufacture their own motor feedback cable.
3) The CN3 communication connector is part of the separately ordered GE serial communication cable (IC800VMCS030). This connector is only required when user will manufacture their own
communication cable.
4) These connectors are shipped with each VersaMotion amplifier (100W to 1 kW) and are only necessary to replace lost or damaged connector mates. Amplifiers rated 2 kW and larger have fixed
wiring terminals and do not use a plug-on connector mate.
5) The optional breakout terminal board provides screw terminations for wiring each I/O point on the amplifier CN1 I/O connector. The flying lead I/O interface cable (IC800VMCI0xx) or CN1 connector
(IC800VMACONCN1) may be used.
6) The optional external braking resistors are used to dissipate excessive renenerated energy during fast deceleration of large loads from high speeds.

Motion Control Systems
VersaMotion
Ordering Information (continued)
VersaMotion VersaMotion VersaMotion
Model 1000 Watt 2000 Watt 3000 Watt
Motor Part Number IC800VMM10LNKSE25 IC800VMM20LNKSE25 IC800VMM30MNKSE25
IC800VMM10MNKSE25 IC800VMM20MNKSE25
Motor/Brake Part Number IC800VMM10LBKSE25 IC800VMM20LBKSE25 IC800VMM30MBKSE25
IC800VMM10MBKSE25 IC800VMM20MBKSE25
Amplifier Part Number IC800VMA102 IC800VMA202 IC800VMA302
Cables
Power Cable 3 m IC800VMCP1030 IC800VMCP2030 IC800VMCP3030
5 m IC800VMCP1050 IC800VMCP2050 IC800VMCP3050
10 m IC800VMCP1100 IC800VMCP2100 IC800VMCP3100
20 m IC800VMCP1200 IC800VMCP2200 IC800VMCP3200
Brake and Power Cable 3 m IC800VMCB1030 IC800VMCB2030 IC800VMCB3030
5 m IC800VMCB1050 IC800VMCB2050 IC800VMCB3050
10 m IC800VMCB1100 IC800VMCB2100 IC800VMCB3100
20 m IC800VMCB1200 IC800VMCB2200 IC800VMCB3200
Encoder Cable 3 m IC800VMCE1030 IC800VMCE1030 IC800VMCE1030
5 m IC800VMCE1050 IC800VMCE1050 IC800VMCE1050
10 m IC800VMCE1100 IC800VMCE1100 IC800VMCE1100
20 m IC800VMCE1200 IC800VMCE1200 IC800VMCE1200
Communications & I/O Interface Cables
Communications Cable 3 m IC800VMCS030 IC800VMCS030 IC800VMCS030
Flying lead I/O interface Cable 1 m IC800VMCI010 IC800VMCI010 IC800VMCI010
3 m IC800VMCI030 IC800VMCI030 IC800VMCI030
Amplifier Connectors
CN1 I/O Connector IC800VMACONCN1 IC800VMACONCN1 IC800VMACONCN1
CN2 Encoder Connector IC800VMACONCN2 IC800VMACONCN2 IC800VMACONCN2
CN3 Communication Connector IC800VMACONCN3 IC800VMACONCN3 IC800VMACONCN3
AC Power Connector IC800VMACONACP N/A N/A
Motor Power Connector IC800VMACONMTRP N/A N/A
External Braking Resistor Connector IC800VMADBR001 N/A N/A
Motor Connectors
Power Connector (motor only) IC800VMMCONP003 IC800VMMCONP003 IC800VMMCONP004
Power Connector (motor & brake) IC800VMMCONP003 IC800VMMCONP003 IC800VMMCONP004
Encoder Connector IC800VMMCONE002 IC800VMMCONE002 IC800VMMCONE002
Accessories
I/O Terminal Breakout Board and Cable 0.5 m IC800VMTBC005 IC800VMTBC005 IC800VMTBC005
External Braking Resistor IC800VMBR040 IC800VMBR040 IC800VMBR040
40Ω, 400 Watt
External Braking Resistor IC800VMBR020 IC800VMBR020 IC800VMBR020
