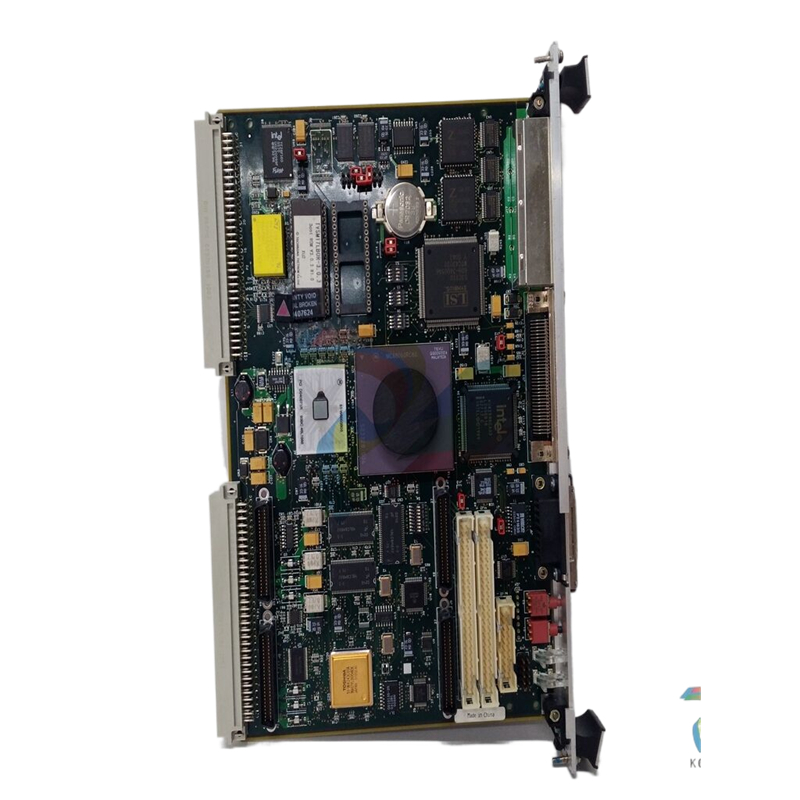

MOTOROLA MVME162 Embedded Controller
❤ Add to collection

MOTOROLA MVME162 Embedded Controller

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

MOTOROLA MVME162 Embedded Controller

28756.00
¥28740.00
Weight:4.000KG
Quantity:
(Inventory: 22)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

MOTOROLA MVME162 Embedded Controller


MOTOROLA MVME162 Embedded Controller

DESCRIPTION

The MVME162 is a double-high VMEmodule equipped with an MC68LC040 or optional MC68040 microprocessor. (The MC68040 microprocessor has a floating-point coprocessor; the MC68LC040 does not.)

The MVME162 has 1MB, 4MB, or 8MB of parity-protected DRAM; 512KB SRAM (with battery backup); a TOD clock (with battery backup); an optional LAN Ethernet transceiver interface with DMA, two serial ports (EIA-232-D and EIA-232-D/EIA-530); six tick timers with watchdog timer(s); optional SCSI bus interface with DMA; VMEbus interface (local bus to VMEbus/VMEbus to local bus, with A16/A24/A32, D8/D16/D32 bus widths and a VMEbus system controller).

Features

Features of the MVME162 include:

❏ 25MHz 32-bit Microprocessor: either an MC68LC040 Enhanced 32-bit Microprocessor with 8KB of cache and MMU, or an optional 25MHz MC68040 32-bit Microprocessor with 8KB of cache, MMU, and FPU

❏ 1MB, 4MB, or 8MB of shared Dynamic Random Access Memory (DRAM) with programmable parity

❏ 512KB of Static Random Access Memory (SRAM) with battery backup

❏ One JEDEC standard 32-pin PLCC EPROM socket (EPROMs may be shipped separately from the MVME162)

❏ 1MB Flash memory: either one Intel 28F008SA (for older boards) or four Intel 28F020s (for newer boards)

❏ Four 32-bit programmable timers and programmable Watchdog Timer (MCchip)

❏ Two 32-bit programmable timers and programmable Watchdog Timer (optional VMEchip2)

❏ 8K by 8 Non-Volatile Random Access Memory (NVRAM) and Time of Day (TOD) clock with battery backup (Thompson MK48T08)

❏ Input/Output

– Two serial ports (one EIA-232-D DCE; one EIA-232-D or EIA-530 DCE/DTE)

– Serial port controller (Zilog Z85230)

– Optional Small Computer Systems Interface (SCSI) bus interface with 32-bit local bus burst Direct Memory Access (DMA) (NCR 53C710 controller)

– Optional LAN Ethernet transceiver interface with 32-bit local bus DMA (Intel 82596CA controller)

– Four MVIP IndustryPack interfaces

❏ VMEbus interface (VMEchip2)—non-VMEbus version optional

– VMEbus system controller functions

– VMEbus interface to local bus (A24/A32, D8/D16/D32 (D8/D16/D32/D64BLT) (BLT = Block Transfer)

– Local bus to VMEbus interface (A16/A24/A32, D8/D16/D32)

– VMEbus interrupter

– VMEbus interrupt handler

– Global CSR for interprocessor communications

– DMA for fast local memory-VMEbus transfers (A16/A24/A32, D16/D32[D16/D32/D64BLT])

❏ Switches and Light-Emitting Diodes (LEDs)

– Two pushbutton switches (ABORT and RESET)

– Eight LEDs (FAIL, STAT, RUN, SCON, LAN, FUSE, SCSI, and VME)

Specifications

Power requirements:+5V (± 5%), 3.5 A typical, 4.5 A maximum

Operating temperature:0° to 70° C exit air with forced air cooling (see NOTE)

Storage temperature:-40° to +85° C

Relative humidity:5% to 90% (noncondensing)

Height:9.2 inches (233 mm)

Depth:6.3 inches (160 mm)

Thickness:0.66 inch (17 mm)
