Available in a variety of display sizes, the QuickPanel View bundled visualization solution provides the
tools required for today’s application needs. By integrating the best-selling QuickPanel family of touch
screens with award-winning Proficy* Machine Edition software, QuickPanel View delivers flexible, scalable
performance on a rugged hardware platform. The intuitive environment of Proficy View – Machine Edition
software helps reduce application development time, and connectivity is made easy with a family of
serial, Ethernet and Fieldbus interfaces.

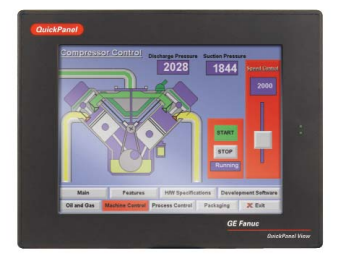

GE FANUC QuickPanel* View
The QuickPanel View Advantage
The QuickPanel View family is a robust, integrated
hardware and software solution.
Advantages include:
• Broad range of display sizes from 6" to 15"
• Choice of Monochrome, Color-STN, or
Color-TFT display
• Microsoft Windows® CE operating system
• Expandable memory & Fieldbus card†
• CompactFlash†
• UL Class 1 Div 2 (A, B, C, D), ATEX Class 1,
Zone 2, CE Mark
• Cost-effective replacement for panel operators
• Functions from data collection and trending to
system security and alarming
• Built-in web server for access to data, and
panels using any standard browser†
• Communication over serial, Ethernet,
and communication expansion cards†
• Multi-language support selectable by the
operator when the system is online
• Shared tags for increased productivity –
applications developed for QuickPanel View
can share tags with other Proficy Machine
Edition applications, eliminating the need
to enter the data more than once
• Migration of applications developed
with QuickDesigner
• Extensive library of pre-configured
animation objects
Meeting your application needs
with a combination of bright
touch screen displays, multiple
communication options, and
Proficy View – Machine Edition
software.
IC754VSB06MTD IC754VSI06MTD IC754VSI06STD IC754VSI12MTD IC754VSI12CTD IC754VSL06MTD IC754VSL06CTD IC754VSL12CTD IC754VSF15CTD
Display:
Type 6" Mono 6" Mono 6" Color-STN 12" Mono 12" Color-TFT 6" Mono 6" Color-TFT 12" Color-TFT 15" Color-TFT
Resolution 320 x 240 pixels 320 x 240 pixels 800 x 600 pixels 800 x 600 pixels 320 x 240 pixels 800 x 600 pixels 1024 x 768 pixels
Size 5.7" (Diagonal) 5.7" (Diagonal) 12.1" (Diagonal) 12.1" (Diagonal) 5.7" (Diagonal) 12.1" (Diagonal) 15.1" (Diagonal)
Memory:
DRAM 16 MB 32 MB 32 MB 64 MB
Expandable No To 64 MB or 96MB To 64 MB or 96MB To 96 MB or 128 MB
Communications
Serial: Com #1 RS232/RS485 RS232/RS485 RS232/RS485
Serial: Com #2 None None RS232
Ethernet: LAN #1 Download Only 10/100 Mbps 10/100 Mbps
Ethernet: LAN #2 None None None 10 Mbps 10/100 Mbps
Comm. Expansion None GE Fanuc Genius, DeviceNet Slave & PROFIBUS Slave GE Fanuc Genius, DeviceNet Slave & PROFIBUS Slave
Compact Flash None One, Type 2 One, Type 2
Environmental
Operating Temperature -10 to 60°C (14 to 140°F) -10 to 60°C (14 to 140°F) 0 to 60°C (32 to 140°F) 0 to 50°C (32 to 122°F) -10 to 60°C (14 to 140°F) 0 to 60°C (32 to 140°F) 0 to 50°C (32 to 122°F) 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F) -20 to 60°C (-4 to 140°F)
Agencies UL - Class 1 Div 2 (A, B, C, D) UL - Class 1 Div 2 (A, B, C, D) UL - Class 1 Div 2 (A, B, C, D)
ATEX - Class 1 Zone 2 ATEX - Class 1 Zone 2 ATEX - Class 1 Zone 2
CE Mark CE Mark CE Mark
Environmental NEMA 4/12/4x NEMA 4/12/4x NEMA 4/12/4x
Panel Cut-Out (W x H x D) 6.14" x 4.86" x 2.03" 6.14" x 4.86" x 2.76" 11.88" x 8.96" x 2.37" 6.14" x 4.86" x 2.76" 11.88" x 8.96" x 2.37" 14.93" x 12.03" x 2.78"
158 mm x 126 mm x 52 mm 158 mm x 126 mm x 70 mm 302 mm x 228 mm x 60 mm 158 mm x 126 mm x 70 mm 302 mm x 228 mm x 60 mm 379 mm x 305 mm x 71 mm
Front of Panel & Depth (W x H x D) 8.00" x 6.17" x 0.85" 8.00" x 6.17" x 0.85" 13.26" x 10.34" x 0.38" 8.00" x 6.17" x 0.85" 13.26" x 10.34" x 0.38
