GE FANUC ADVANCED MICRO CONTROLLER 2
❤ Add to collection

GE FANUC ADVANCED MICRO CONTROLLER 2

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

PURPOSE The purpose of this document is to describe the features of the Advanced Micro Controller 2, providing basic information in a datasheet form.

39000.00
¥38000.00
Weight:3.500KG
Quantity:
(Inventory: 90)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

PURPOSE The purpose of this document is to describe the features of the Advanced Micro Controller 2, providing basic information in a datasheet form.


GE FANUC ADVANCED MICRO CONTROLLER 2
DESCRIPTION

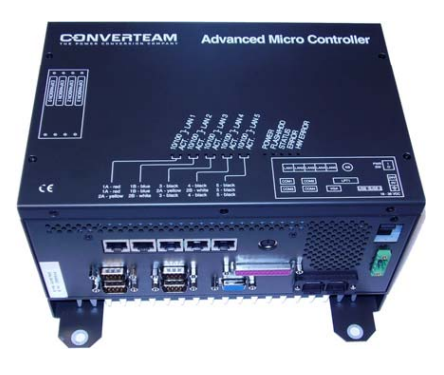

The main controller box used for the AMC-PLC, AMC-AU and AMC-DP is a Converteam design

supplied by Eltech, using the Arbor EmE7x-i701 controller board.

• Small rugged flange mounted box, for mounting on a vertical panel

• 70C temperature rating without fan

• Type tested.

• Shock test to 15g (IEC1131)

• Low cost, based on COTS Pentium M class embedded CPU.

• Higher Performance Pentium-M 1.40 GHz is also available to special order

• LED indication of Power, Healthy, Running

• Identity Dongle port for defining controller ID

• Integrated Ethernet ports (5 off), and 4 off serial links (RS232) - 3 available to applications.

• Integrated high density serial interfaces (for Marine DP)

• Used in the Marine Architecture (DP and Automation controllers, fieldstation PLCs &

redundancy boxes), PEC drive Controllers & general purpose PLC applications

COMMERCIAL IN CONFIDENCE
ADVANCED MICRO CONTROLLER 2
COMMERCIAL IN CONFIDENCE
File : AMC2 Datasheet Issue C.doc Page : 2/3 ©2006 Converteam UK Ltd Converteam Ltd Version : C 2nd July 09
CPU 600Mhz Celeron M
Memory 256MB DRAM, 256MB Compact Flash
Relative performance: Approx. 2 times AMC 1 (dependant on application code)
Power Supply 24V DC +/-20% supply. Consumes ~ 0.9A
LANs 5
Serial 4
USB 2 (Yamaichi latch system)
Expansion slots 4 PMC/PC104+ slots
Expansion uses: 16 channel serial (Serial 16+)
FIP, Profibus Master, Profibus Slave
Fieldbus
Fibre Optic Ethernet
Mounting Panel

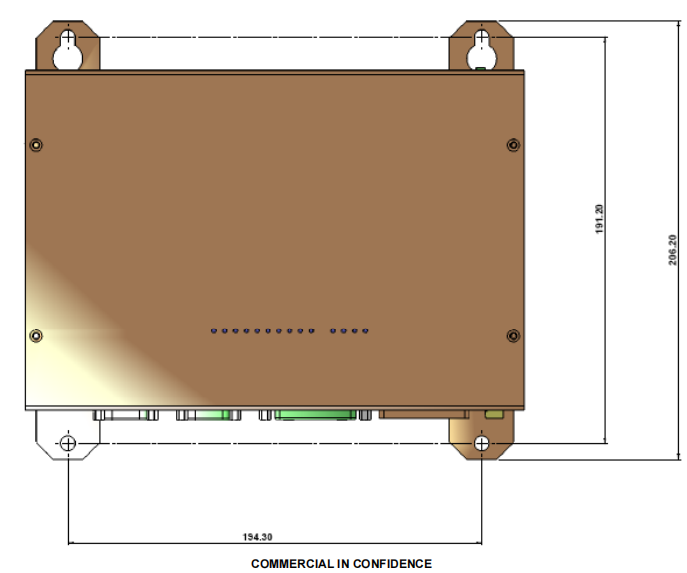

Size w-h-d 234 x 206 x 120 mm
Other features Fanless
Watchdog
Temperature monitoring
Extractable Compact Flash HDD
Software platforms
supported:
Marine Controller (Isagraf)
HPCi
RE-ORDER CODES
The AMC comes ready assembled and installed with basic firmware from its supplier. The ordering
references below are Converteam OISs which define the kits of parts, and are used by the
procurement team and/or the supplier. Users only need specify the ordering code.
For Pentium-M 1.40 GHz version, contact Marine procurement department (P1xx-6x53).
Description Ordering Code Manufacturer Comment
AMC2 Controller:
5 network ports P110-6052 Eltech Solutions
AMC2 Controller:
5 network ports, 1 Serial16+ P111-6052 Eltech Solutions
AMC2 Controller:
5 network ports, 2 Serial16+ P112-6052 Eltech Solutions
AMC2 FIP Controller:
5 network ports, 1 FIP card P121-6052 Eltech Solutions
AMC2 FIP Controller:
5 network ports, 1 Serial16+, 1 FIP cards P121-6152 Eltech Solutions Suitable for DP upgrades
AMC2 FIP Controller:
5 network ports, 2 FIP cards P122-6052 Eltech Solutions Suitable for upgrades
& gateway applications
AMC2 FIP Controller:
5 network ports, 1 Serial16+, 2 FIP cards P122-6152 Eltech Solutions Suitable for DP upgrades
AMC2 FIP Controller:
5 network ports, 2 Serial16+, 2 FIP cards P122-6252 Eltech Solutions Suitable for DP upgrades
AMC2 Controller with Windows XP:
5 network ports P106-6052 Eltech Solutions General embedded PC
applications
AMC2 Controller:
5 network ports, 1 Profibus Master port P110-6152 Eltech Solutions
AMC2 Controller:
5 network ports, 2 Profibus Master ports P110-6252 Eltech Solutions
AMC2 Controller: P110-6552 Eltech Solutions


ADVANCED MICRO CONTROLLER 2
COMMERCIAL IN CONFIDENCE
File : AMC2 Datasheet Issue C.doc Page : 3/3 ©2006 Converteam UK Ltd Converteam Ltd Version : C 2nd July 09
Description Ordering Code Manufacturer Comment
5 network ports, 1 Profibus Slave port
AMC2 Controller:
5 network ports, 2 Profibus Slave ports P110-6652 Eltech Solutions
AMC2 Controller: 5 network ports, 1
Profibus Master port, 1 Serial16+ P111-6152 Eltech Solutions
AMC2 Controller: 5 network ports, 2
Profibus Master ports, 1 Serial16+ P111-6252 Eltech Solutions
AMC2 Controller: 5 network ports, 1
Profibus Master port, 2 Serial16+ P112-6152 Eltech Solutions
AMC2 Controller: 5 network ports, 2
Profibus Master ports, 2 Serial16+ P112-6252 Eltech Solutions
4. SOFTWARE LICENCES
VxWorks runtime licences are needed for the AMC Controllers. Contact Marine Procurement for
advice on the necessary licences.
5. MOUNTING
