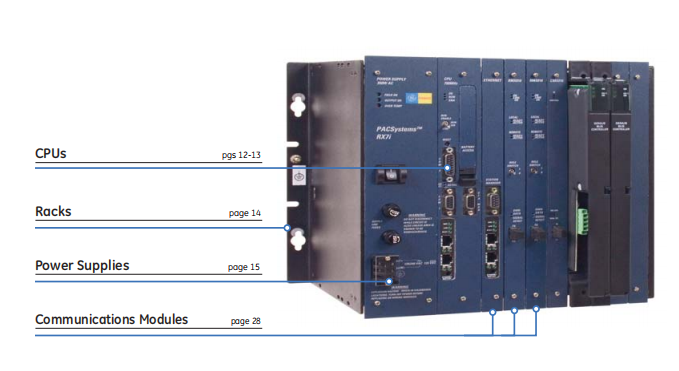

GE FANUC PACSystems* RX7i Controllers

GE FANUC PACSystems* RX7i Controllers

Built on a standard embedded open

architecture, the PACSystems RX7i is

the first member of the groundbreaking

PACSystems family of programmable

controllers (PACs). The RX7i features a

single control engine and universal

programming environment to provide

application portability across multiple

hardware platforms. Designed to

address mid- to high-end applications

for OEMs, integrators, and end users,

the RX7i is ideally suited for integrated

solutions that require open architecture, large memory, distributed I/O

and high performance.

The RX7i Features •
Pentium® CPUs for your every need, from Celeron 300mHz to M Class  1.8 Ghz •
A VME64 Backplane providing up to four times the bandwidth of existing Series 90-70 systems •
10/100 Ethernet built into the CPU, with easy cabling RJ-45 dual ports connected through an
auto-sensing switch, so there is no need for  additional switches or hubs rack  to rack • Up to 64 MB
 memory for fast execution, storage of the complete program with all documentation—all in one CPU
• Supports existing Series 90-70  modules and expansion racks,
VME  modules and GENIUS networks— protecting your hardware investment
Proficy Machine Edition Proficy Machine Edition is an advanced software environment for the
 development and maintenance of machine level automation. Visualization, motion control, and execution logic are developed with a single programmer.

PACSystems RX7i 12
www.gefanuc.com GE Fanuc Control Systems Solutions  PACSystems RX7i CPUs feature Intel Celeron and Pentium III
processors and offer fast execution, larger memory capacity and upgradability to track future technology growth.
RX7i CPUs are available with various memory sizes, performance capabilities and advanced functionalities, such as
 software configuration of data and program memory. PACSystems CPUs also provide 10K of user RAM along with
10K of non-volatile user flash memory for added protection of your data and programs.

IC698CPE010 IC698CPE020† IC698CRE020†

Product Name Central Processing Unit, 300 MHz, Central Processing Unit, 700 MHz, Redundancy Central Processing Unit, 700

Floating Point Floating Point MHz, Floating Point

PACSystems Processor Speed 300 MHz 700 MHz 700 MHz

PACSystems CPU Memory 10 Mbytes of User Logic RAM 10 Mbytes of User Logic RAM 10 Mbytes of User Logic RAM

PACSystems User Flash Memory Yes (10 Mbytes) Yes (10 Mbytes) Yes (10 Mbytes)

Floating Point Math Yes Yes Yes

PACSystems I/O Discrete Points Available 32 Kbits 32 Kbits 32 Kbits

Other Memory Allocations %W: Configurable up to 4 Mbytes, %W: Configurable up to 4 Mbytes, %W: Configurable up to the maximum

Symbolic: Configurable up to 10 Mbytes Symbolic: Configurable up to 10 Mbytes available user RAM, Symbolic:

Configurable up to 10 Mbytes

Embedded Communications Serial, Ethernet Serial, Ethernet Serial, Ethernet

Protocols Supported Modbus RTU Slave, Modbus RTU Slave, Modbus RTU Slave,

SNP, Serial I/O SNP, Serial I/O SNP, Serial I/O

Built-in Ports 2 Serial (RS-232, RS-485) 2 Serial (RS-232, RS-485) 2 Serial (RS-232, RS-485)

1 Ethernet (Auto 10/100, RJ45) 1 Ethernet (Auto 10/100, RJ45) 1 Ethernet (Auto 10/100, RJ45)

Current Required from 5V Bus 3.6 Amps 4.0 Amps 4.0 Amps†Requires fan
