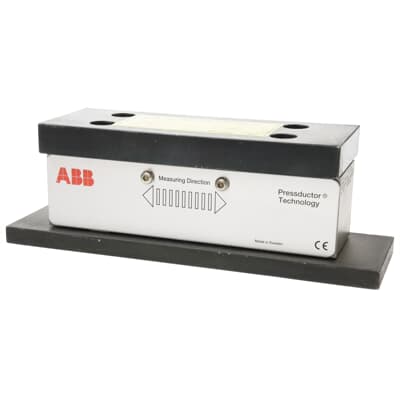

ABB PFTL301E-1.0KN 3BSE019050R1000 PillowBlock Load cells

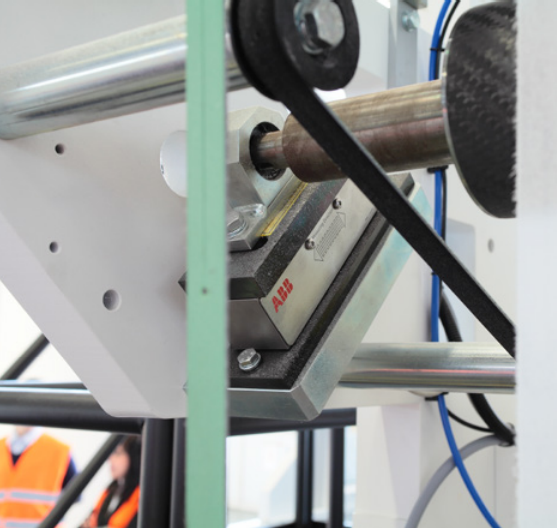

The Horizontal Mini Series PillowBlock load cells for the web processing industries have the same dimensions as conventional load cells and mount in the same way. But they measure only the horizontal force component of the web tension.

Unlike load cells that measure along the vertical axis, they are not forced to sense the roll weight along with the web tension. So these load cells can be sized to the tension level alone, and function at the high end of their measuring range, where load cells perform best. The result: always optimal tension measurement performance – even when rolls are heavy and tension light.

• Quality load cells that eliminates drift and recalibration


• Wide operating range


• Easy to apply

ABB's Pressductor transducer stands for unbeatable load cell performance, thanks to its unique combination of accuracy, overload capacity and ability to withstand harsh environments. By using this technology you will achieve higher quality and reliability, especially under demanding conditions.

All load cells

Operating principle Electromagnetic

Pressductor technology

Accuracy class 4 % ±1.0

Repeatability error % <±0.1

Operating range 30:1

Stainless steel SIS 2387 5

DIN X4CrNiMo165

Working temperature range –10 to 80°C

14 to 176 °F

Zero point drift 6 %/°C <±0.015

%/°F <±0.008

Sensitivity drift 6 %/°C <±0.025

%/°F <±0.014

1 Values indicate the total capacity of the load cells when

taking into account their permissible “extended capacity”.

In the extended range, above the nominal load, some small

decline in measurement accuracy may be experienced.

2 Maximum permitted loads without affecting load cell calibration.

3 At nominal load.

4 Accuracy class is defined as the maximum deviation, and is

expressed as a percentage of the sensitivity at nominal load.

This includes linearity deviation, hysteresis and repeatability error.

5 Corrosion resistance properties similar to AISI 304.

6 Applies for 20 to 60 °C/68 to 148 °F.
