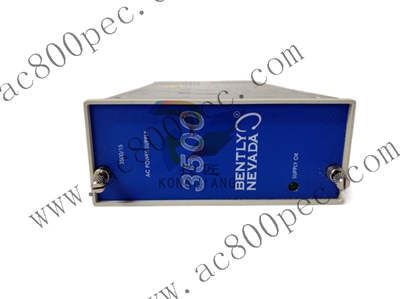

BENTLY NEVADA 3500/15 133292-01 Power Supply Module

BENTLY NEVADA 3500/15 133292-01 Power Supply Module

The Bently Nevada™ 3500/15 AC and DC Power Supplies are

half-height modules and must be installed in designated

slots on the left side of the rack. The 3500 rack can contain

one or two power supplies with any combinations of AC and

DC. Either supply can power a full rack.

When two power supplies are installed in a rack, the one in

the lower slot acts as the primary supply, and the other in the

upper slot acts as the backup supply. If installed, the second

supply is the backup for the primary one.

Removing or inserting either power supply module does not

disrupt operation of the rack as long as a second power

supply is installed.

The 3500/15 AC and DC Power Supplies accepts a wide range

of input voltages and converts them to voltages acceptable

for use by other 3500 modules. The following power supplies

are available with the 3500 Series Machinery Protection

System:

l Universal AC Power

l High Voltage DC Power Supply

l Low Voltage DC Power Supply

The Universal AC Power Supply and PIM (Power

Input Module) are not compatible with the Legacy

3500 AC Power Supply, High Voltage AC PIM and

Low Voltage AC PIM.

The High Voltage and Low Voltage DC Power

Supplies and PIM(Power Input Module) are NOT

compatible with the Legacy 3500 High Voltage and

Low Voltage DC Power Supplies and PIMs.

Specifications

Inputs

Voltage Options

Universal Voltage AC

Description

This option uses the universal

AC Power Supply and universal

AC Power Input Module (PIM).

Input

Voltage

110 to 220 Vac nominal

Non-hazardous areas:

85 to 264 Vac rms

Hazardous areas:

85 to 250 Vac rms

120 to 373 Vac pk

The universal AC Power Supply

and Power Input Module are

not compatible with the legacy

High Voltage AC or Low Voltage

AC units.

Input

Frequency 47 to 63 Hz

High Voltage DC

Description

This option uses the High

Voltage DC Power Supply and

the High Voltage DC Power

Input Module (PIM).

Input

voltage 88 to 140 Vdc

Low Voltage DC

Description

This option uses the Low

Voltage DC Power Supply and

the Low Voltage DC Power

Supply Input Module (PIM).

Input

voltage 20 to 30 Vdc

Current Information

Out of

Range

Protection

For all power supply options, an

under-voltage does not harm

the supply or the PIM.

An over-voltage causes the fuse

to open on the PIM.

Full Rack Current Draw

Universal

voltage AC 2.8 A rms (maximum)

High

voltage DC 2.5 A (maximum)

Low voltage

DC 11.0 A (maximum)

Outputs

Front Panel LEDs

Supply

OK LED

Indicates when the power supply is

operating properly

Physical

Power Supply Module

Dimensions

(Height x

width x

depth)

120.7 mm x 50.8 mm x 251.5

mm

4.75 in x 2.0 in x 9.9 in

Weight 1.39 kg

3.06 lb

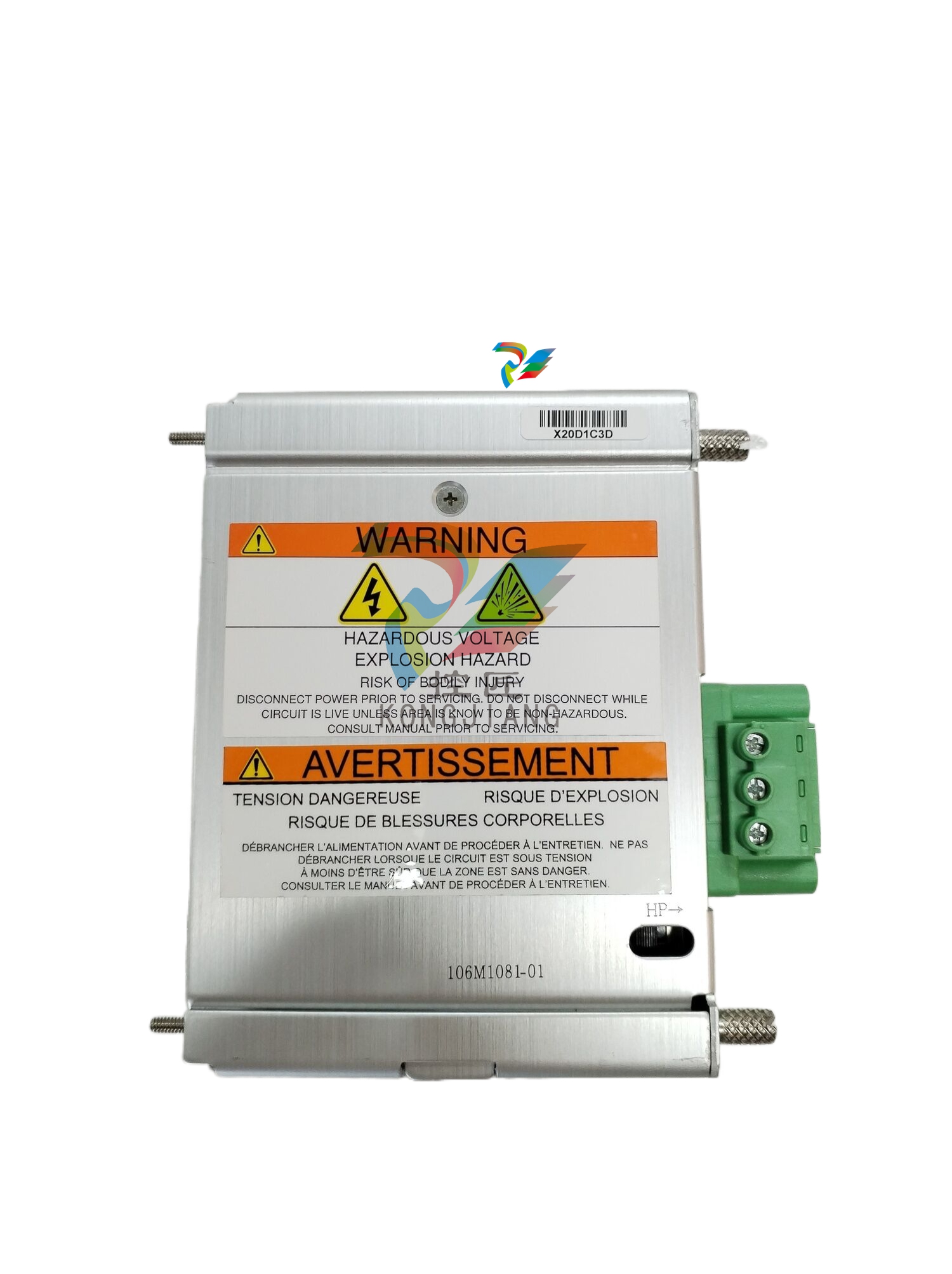

Power Input Modules

Dimensions

(Height x

width x

depth)

120.7 mm x 25.4 mm x 114.3 mm

4.75 in x 1.0 in x 4.5 in

Weight 0.34 kg

0.75 lb

Rack Space Requirements

Power

supply

module

Two half-height slots are

located on the left side of the

rack. Each slot accommodates

one power supply. Both slots

can hold a power supply at the

same time, allowing for

redundant power supplies.

Power input

module

Special half-height module

located directly behind the

associated power supply

Miscellaneous

Minimum

loading

No minimum rack load is

required.

Environmental Limits

Operating

temperature

-30 °C to +65 °C

-22 °F to +150 °F

Storage

temperature

-40 °C to +85 °C

-40 °F to +185 °F

Humidity 95%, non-condensing
