Home >> GE >> GE IC693TCM302 Temperature Control Modules
Current position：

Brand

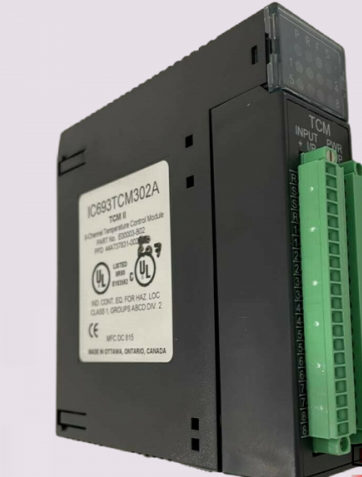

GE IC693TCM302 Temperature Control Modules
❤ Add to collection

GE IC693TCM302 Temperature Control Modules

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

The Temperature Control Module (TCM), is a high performance control module providing

eight channels of thermocouple input and eight channels of control output in a single

RX3i module. Each channel can operate in closed or open loop mode relieving the PLC

of providing the temperature control functions. The module also supports Autotuning.

￥59595.00
￥60000.00
Weight：3.550KG
Quantity：
(Inventory: 50)
Consultation
Accessories
  • ABB-07KR51-Centr
    Original ：￥11222.00
    With a price ：￥11222    		 Quantity
  • ABB-3BSE020269R0
    Original ：￥16364.00
    With a price ：￥16364    		 Quantity
    •
    Original ：￥
    0.00

      With the total price ：￥
    0.00
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

The Temperature Control Module (TCM), is a high performance control module providing

eight channels of thermocouple input and eight channels of control output in a single

RX3i module. Each channel can operate in closed or open loop mode relieving the PLC

of providing the temperature control functions. The module also supports Autotuning.



GE IC693TCM302 Temperature Control Modules

Programmable Controllers
The Temperature Control Module (TCM), is a high performance control module providing
eight channels of thermocouple input and eight channels of control output in a single
RX3i module. Each channel can operate in closed or open loop mode relieving the PLC
of providing the temperature control functions. The module also supports Autotuning.
Temperature Control Modules
IC693TCM302 IC693TCM303
Product Name PACSystems RX3i Temperature Control Module,
(8) T/C, (1) RTD and (8) 24 VDC Output
PACSystems RX3i Temperature Control Module,
Extended Range, (8) T/C, (1) RTD and (8) 24 VDC Output
Lifecycle Status Mature Mature
Module Type Temperature Control Temperature Control
Backplane Support No Backplane Restrictions No Backplane Restrictions
Number of Slots Module
Occupies on Backplane 1 1
Number of Channels 8 T/C In/ 8 DC Out 8 T/C In/ 8 DC Out
Range
J=0-600°C
K=0-1050°C
L=0-600°C
J=0-450°C
K=0-600°C
L=0-450°C
Output Voltage Range 18 to 30 volts DC 18 to 30 volts DC
Load Current per Point 100 mA maximum sourcing 100 mA maximum sourcing
Diagnostics
Open thermocouple and reverse connection
detection capability Detection and indication of
out-of-tolerance temperature readings
Open thermocouple and reverse connection
detection capability Detection and indication of
out-of-tolerance temperature readings
Connector Type Two 20 pin connectors (screw type) Two 20 pin connectors (screw type)

Internal Power Used 150 mA @ 5 VDC 150 mA @ 5 VDC

PACSystems RX3i Programmable Controllers
The Thermocouple Input Modules allow thermocouple temperature sensors to be directly
connected to the PLC with external signal processing (transducers, transmitters, etc.).
The module performs all analog and digital processing of the thermocouple signal. The
enhanced thermocouple input modules add isolation or high-resolution. On these modules,
each channel can be configured for a specific type of sensor wire. An autodetect external
AD592 cold junction compensation feature is also available.
Thermocouple I/O Modules
IC695ALG600 Thermocouple IC695ALG306 IC695ALG312 IC695ALG412
Product Name
Universal Analog and configurable
for Current, Voltage, RTD,
Thermocouple and Resistive. High
Density (8 Channel) Requires Cold
Junction Compensation; are available
for Thermocouple configurations
(IC695ACC600 contains 2 CJCs)
Isolated Thermocouple Input
module provides six isolated
differential thermocouple input
channels. Each channel can be
individually configured for inputs
from: Thermocouple types: J, K, T, E,
R, S, B, N, or C and Voltage: ±150mV
or ±50mV.
Isolated Thermocouple Input
module provides twelve isolated
differential thermocouple input
channels. Each channel can be
individually configured for inputs
from: Thermocouple types: J, K, T, E,
R, S, B, N, or C and Voltage: ±150mV
or ±50mV.
Isolated Thermocouple Input
module provides twelve isolated
differential thermocouple input
channels. Each channel can be
individually configured for inputs
from: Thermocouple types: J, K, T, E,
R, S, B, N, or C and Voltage: ±50mV.
The ALG412 offers a 10dB
improvement in noise rejection
compared to the ALG312
thermocouple input module.
Lifecycle Status Active Active Active ACtive
Module Type Thermocouple Input Thermocouple Input Thermocouple Input Thermocouple Input
Backplane Support Universal Backplane Only.
Uses PCI Bus.
Universal Backplane Only.
Uses PCI Bus.
Universal Backplane Only.
Uses PCI Bus.
Universal Backplane Only.
Uses PCI Bus.
Number of Slots Module
Occupies on Backplane 1 1 1 1
Range B, C, E, J, K, N, R, S, T J, K, T, E, R, S, B, N, or C J, K, T, E, R, S, B, N, or C J, K, T, E, R, S, B, N, or C
Diagnostics
Open wire, Short Circuit, Positive/
Negative Rate of Change, High, High High, Low, Low-Low
Open wire, Short Circuit, Positive/
Negative Rate of Change, High,
High-High, Low, Low-Low
Open wire, Short Circuit, Positive/
Negative Rate of Change, High,
High-High, Low, Low-Low
Open wire, Short Circuit, Positive/
Negative Rate of Change, High,
High-High, Low, Low-Low
Number of Channels 8 6 12 12
Channel-to-Channel
Isolation
Two Groups of Four 250 VAC Continuous 1500 VAC 1
minute 2550 VDC 1 second
250 VAC Continuous 1500 VAC 1
minute 2550 VDC 1 second
250 VAC Continuous 1500 VAC 1
minute 2550 VDC 1 second
Common Mode Rejection
120dB minimum @ 50/60 Hz with 8
Hz filter 110dB minimum @ 50/60 Hz
with 12 Hz filter
2.3 Hz filter, 50/60Hz: 100 dB 4 Hz
filter, 50Hz: 100 dB 4.7 Hz filter,
60Hz: 100 dB
2.3 Hz filter, 50/60Hz: 100 dB 4 Hz
filter, 50Hz: 100 dB 4.7 Hz filter,
60Hz: 100 dB
All filters, 50/60 Hz: 110 dB
Chanel to Channel
Crosstalk
70 dB minimum 70 dB minimum 70 dB minimum
Notch Filter Yes From 2.3 Hz to 28 Hz per channel From 2.3 Hz to 28 Hz per channel From 2.3 Hz to 28 Hz per channel
Resolution
32-bit IEEE floating point or 16-bit
integer (in 32-bit field) input
data format
32-bit IEEE floating point or 16-bit
integer (in 32-bit field) input
data format
32-bit IEEE floating point or 16-bit
integer (in 32-bit field) input
data format
32-bit IEEE floating point or 16-bit
integer (in 32-bit field) input
data format
Accuracy
Calibrated Accuracy at 25°C.
Better than 0.1% of range. Accuracy
depends on A/D filter, data format,
input noise, and ambient temperature.
±0.1% of voltage span at 25°C.
±0.25% of span over
temperature range.
±0.1% of voltage span at 25°C
±0.25% of span over
temperature range.
±0.1% of voltage span at 25°C
±0.25% of span over
temperature range.
Update Rate
10ms per Channel; 4 Channels =
40ms (1KHz filter)127ms per Channel *
4 Channels = 508ms (8Hz filter)
Channels that are disabled are not
scanned, shortening scan time.
10ms per Channel; 4 Channels =
40ms (1KHz filter)127ms per Channel
* 4 Channels = 508ms (8Hz filter)
Channels that are disabled are not
scanned, shortening scan time.
10ms per Channel; 4 Channels =
40ms (1KHz filter)127ms per Channel
* 4 Channels = 508ms (8Hz filter)
Channels that are disabled are not
scanned, shortening scan time.
Configurable from 15 msec
to 120 msec.
I/O Required N/A N/A N/A N/A
A/D Conversion Type Sigma Delta Sigma Delta Sigma Delta Sigma Delta
A/D Conversion Time
(Assumes 2 ADC’s running in parallel,
no CJC or lead resistance) 10ms per
Channel 4 Channels = 40ms (1KHz filter)
127ms per Channel 4 Channels =
508ms (8Hz filter) Channels that
are disabled are not scanned,
shortening scan time.
15 msec @ 28 Hz to
120 msec @ 2.3 Hz
15 msec @ 28 Hz to
120 msec @ 2.3 Hz
15 msec @ 28 Hz to
120 msec @ 2.3 Hz
Connector Type IC694TB3x32, IC694TBSx32 or
IC694TBC032. Sold Separately.
IC694TB3x32, IC694TBSx32 or
IC694TBC032. Sold Separately.
IC694TB3x32, IC694TBSx32 or
IC694TBC032. Sold Separately.
IC694TB3x32, IC694TBSx32 or
IC694TBC032. Sold Separately.
Internal Power Used 400 mA @ 5 V; 350 mA @ 3.3 V 225 mA @ 5V; 400 mA @ 3.3V 425mA @ 5V; 400 mA @ 3.3V 425mA @ 5V; 400 mA @ 3.3V
  • KUKA KR C4 extended; KR C4 extended CK Assembly Instructions Assembly Manual
  • Assembly/Installation Manual for KUKA KR C4 Compact Control Cabinet
  • KUKA Sunrise Cabinet Med Medical Collaborative Robot Special Control Cabinet
  • KUKA Sunrise Cabinet Next Generation Small Control Cabinet
  • KUKA KR C4 Smallsize-2 family's smallest control cabinet
  • KUKA KR C4 midsize; KR C4 midsize CK medium-sized control cabinet
  • KUKA KR C4 extended is a high-power multi axis control cabinet
  • General installation and operation instructions for KUKA KR C4 and KR C4 CK controllers
  • KUKA KR C4 compact controller operation instructions
  • Installation and Operation Instructions for KUKA Robot Arm
  • KUKA TITAN-2 Ultra Ground Overloading Six Axis Robot
  • Assembly instructions for KUKA KR SCARA-2 CS series robotic arm body
  • KUKA MA KR SCARA X Installation Guide
  • KUKA KR FORTEC-2 Ultra Heavy duty Ground Six Axis Robot Mechanical Assembly Manual
  • KUKA KR FORTEC-2 new generation heavy-duty ground six axis robot
  • KUKA Robots KR 1000 titan; KR 1000 L750 titan With F Variants Assembly Instructions
  • KUKA KR 600 FORTEC heavy-duty six axis ground mounted industrial robot
  • KUKA KR 500 MT FORTEC Heavy duty Six Axis Industrial Robot
  • KUKA KR 360 FORTEC Heavy duty Six Axis Industrial Robot
  • KUKA Sunrise Cabinet Med Medical Edition Robot Controller User Manual
  • KUKA Robots KR SCARA HO Assembly Instructions
  • KUKA Robots KR QUANTEC-2 PA Assembly Instructions
  • KUKA Robots KR QUANTEC-2 K and KR QUANTEC-2 P With K-F and P-C Variants Assembly Instructions
  • KUKA Robots KR QUANTEC-2 HO Assembly Instructions
  • KUKA Robots KR QUANTEC-2 HC Assembly Instructions
  • KUKA KR QUANTEC-2 series heavy-duty ground mounted six axis industrial robot
  • KUKA KR QUANTEC PA series heavy-duty palletizing robot
  • KUKA KR IONTEC-2 series six axis industrial robot
  • KUKA KR IONTEC ultra series six axis heavy-duty industrial robot
  • KUKA KR IONTEC HO Robot Assembly Manual
  • KUKA Robots KR CYBERTECH-3 HW Assembly Instructions
  • KUKA Robots KR CYBERTECH-3 Assembly Instructions
  • KUKA Robots KR CYBERTECH-2 arc Assembly Instructions
  • KUKA Robots KR CYBERTECH nano-2 Assembly Instructions
  • KUKA KR CYBERTECH CR HO (KR   20   R1810-HO) assembly instructions
  • KUKA Robots KR CYBERTECH With F variant Assembly Instructions
  • KUKA KR CYBERTECH CR (KR 20 R1810-CR) Clean Room (CR) Version 6-Axis Industrial Robot
  • KUKA KR AGILUS-3 ultra series small six axis serial robot
  • KUKA KR 300 R2700-2 C-F Cast Ceiling Mounted 6-Axis Heavy duty Industrial Robot
  • KUKA KR 20 R1820-2 E Six Axis Industrial Robot
  • Assembly instructions for KUKA KR AGILUS-3 small six axis robot
  • KUKA KR AGILUS-2 New Generation Small Six Axis Robot
  • KUKA KR 1000 1300 titan PA; KR 1000 L950 titan PA With F Variants Assembly Instructions
  • KUKA KR 700 PA/KR 700 PA Arctic Installation Guide
  • KUKA KR 18 R1450-3 PP six axis ground mounted industrial robot
  • KUKA 12 SCARA Series 4-axis SCARA Horizontal Joint Robot
  • KUKA KR 4 R600 Small Six Axis Industrial Robot
  • Installation Guide for KUKA KR 3 R540 Small 6-Axis Industrial Robot
  • KUKA LBR iiwa CR Clean 7-Axis Lightweight Collaborative Robot
  • KUKA KR AGILUS sixx series six axis industrial robot operation instructions
  • KUKA 4-axis heavy-duty SCARA horizontal multi joint robot KR 60 R1200 Z400 CS
  • KUKA KR 23 SCARA-2 CS SCARA Horizontal Multi Joint Robot
  • KUKA KR 20 SCARA CS Robot Assembly Instructions
  • KUKA KR 15 DELTA-2 Assembly Manual
  • KUKA KR 13 SCARA-2 CS Assembly Manual
  • KUKA KR 3 D1200 (Standard Delta Robot) Assembly Instructions
  • KUKA KR 3 D1200 HM Assembly Manual
  • KUKA LBR Med 7 R800, LBR Med 14 R820 Medical Edition Robot
  • KUKA Robots LBR iiwa 7 R800, LBR iiwa 14 R820 Operating instructions
  • KUKA LBR iiwa CR (Clean Room Version Robot) Operating Instructions
  • Lauer PCStopline series text operation panel
  • KUKA LBR iisy (MA_LBR_iisy V5) assembly manual
  • KUKA LBR iisy 3 R760 Assembly Manual
  • KUKA LBR iico Collaborative Robot Assembly Manual
  • Lauer LCAstarline (LCA300/LCA320/LCA325) Text Display Screen
  • Lauer PCS950/PCS950c/PCS950e operation console
  • Lauer EPC Series Industrial Embedded Human Computer Integrated PC User Guide
  • Bonfiglioli Precision Planetary Gearbox TIR-STD ENG R07
  • Bonfiglioli ACT/ACU Cold Plate Inverter Installation Instructions
  • Bonfiglioli EM-RES-02 Expansion Module
  • Bonfiglioli EM-RES-01 Expansion Module
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-IO-03 Expansion Module
  • Bonfiglioli EM-IO-02 Expansion Module
  • Bonfiglioli Vectron EM-IO-01 Expansion Module
  • Bonfiglioli F series gearbox
  • Installation, operation, maintenance, and spare parts of Bonfiglioli HF series reducers
  • Installation, Operation, and Maintenance of Bonfiglioli 300-300M Series ATEX Reducer
  • Bonfiglioli R3 series planetary gearbox
  • Bonfiglioli C series inline helical gear explosion-proof reducer
  • Bonfiglioli EM-ENC-05 Expansion Module
  • Bonfiglioli EM-ENC-04 Expansion Module
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli CM-CAN CANopen communication module
  • Bonfiglioli EM-SYS System Bus Expansion Module
  • Bonfiglioli CM-PDP Profibus DP Communication Module
  • Bonfiglioli CM-232/CM-485/CM-485T Modbus Communication Manual
  • Bonfiglioli BMS series precision planetary servo reduction motor
  • Bonfiglioli ACTION series ACT210 (230V), ACT410 (400V) frequency converter operation manual
  • Bonfiglioli ACT series frequency converter
  • Bonfiglioli HDP/HDO series gear unit IOM installation, operation and maintenance instructions
  • Installation, operation, and maintenance of Bonfiglioli 300-300M series reducers
  • Bonfiglioli 300M Modular planetary gearboxe
  • Bonfiglioli 3/H series heavy-duty modular gearbox
  • Bonfiglioli KRG-KCG-KSD hydraulic coupling
  • Bonfiglioli Vectron BTD-BCR servo motor
  • Bonfiglioli BTD-BCR synchronous servo motor
  • Bonfiglioli VF-W series ATEX explosion-proof worm gear reducer
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Installation, operation, maintenance, and spare parts instructions for Bonfiglioli EVOX-CP series helical gear reducers (including ATEX explosion-proof models)
  • Installation, operation, and maintenance IOM instructions for Bonfiglioli C/A/F/S series gear reducers (including ATEX explosion-proof versions)
  • Bonfiglioli BX-BE-BN-MX-ME-BXN-MNN Motor Installation, Operation and Maintenance Manual
  • Bonfiglioli VF-W IE2-IE3 Worm Gear Reduction Motor: Complete Selection, Verification, and On site Implementation Technical Guide
  • Bonfiglioli VF-W series ATEX worm gear reducer
  • Bonfiglioli RAN series bevel gear angle reducer
  • Bonfiglioli Industry&Automation Business Unit Integrated Products
  • Bonfiglioli EVOX platform CP coaxial helical gear reduction motor
  • Bonfiglioli C-A-F-S Series IE2-IE3-IE4 three series reducers
  • Complete selection, calibration, and common selection of Bonfiglioli C-A-F industrial gear units
  • Bonfiglioli C series explosion-proof helical gear reducer
  • Bonfiglioli BN-BE-BX-BY series three-phase asynchronous motor
  • Bonfiglioli BMD series permanent magnet AC synchronous servo motor
  • Bonfiglioli A-series spiral bevel gear right angle servo reduction motor
  • Installation, Operation, and Maintenance Instructions for Bonfiglioli AS Series Reducer
  • Bonfiglioli Active series high-end frequency converter
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli A-series spiral bevel gear reducer sample
  • Bonfiglioli Industrial Transmission Products
  • Bonfiglioli RAN series gearbox
  • Bonfiglioli Active 401/201 frequency converter
  • Alcatel Lucent OmniAccess Stellar AP1301 Indoor Wi Fi 6 (802.11ax) Wireless Access Point
  • Alcatel Lucent Enterprise (ALE) Mobile Handheld Terminal Electronics
  • Alcatel Lucent MDR-8000 Digital Microwave Radio
  • Alcatel 1660 SM Release 5 Optical Multi Service Node
  • Alcatel Lucent OmniSwitch 6850 Stackable LAN Switch
  • Alcatel Lucent 7750 Service Router (SR) series business router
