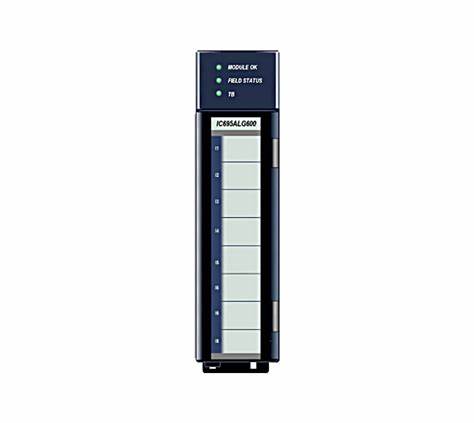

GE IC695ALG600 RTD I/O Modules
❤ Add to collection

GE IC695ALG600 RTD I/O Modules

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

The RTD Input Modules provide RTD inputs that allow the direct connection of 2 and

3-wire RTD temperature sensors without using external signal processing (transducers,

transmitters, etc.). All analog and digital processing of the RTD signal is performed on

the module.

￥23233.00
￥23323.00
Weight：3.550KG
Quantity：
(Inventory: 33)
Consultation
Accessories
  • ABB-07KR51-Centr
    Original ：￥11222.00
    With a price ：￥11222    		 Quantity
  • ABB-3BSE020269R0
    Original ：￥16364.00
    With a price ：￥16364    		 Quantity
    •
    Original ：￥
    0.00

      With the total price ：￥
    0.00
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

The RTD Input Modules provide RTD inputs that allow the direct connection of 2 and

3-wire RTD temperature sensors without using external signal processing (transducers,

transmitters, etc.). All analog and digital processing of the RTD signal is performed on

the module.



GE IC695ALG600 RTD I/O Modules

Programmable Controllers
RTD I/O Modules
The RTD Input Modules provide RTD inputs that allow the direct connection of 2 and
3-wire RTD temperature sensors without using external signal processing (transducers,
transmitters, etc.). All analog and digital processing of the RTD signal is performed on
the module.
IC695ALG600 RTD IC695ALG508 RTD HE693RTD600
Product Name
Universal Analog and configurable for
Current, Voltage, RTD, Thermocouple and
Resistive. High Density (8 Channel) Requires
Cold Junction Compensation; are available
for Thermocouple configurations
(IC695ACC600 contains 2 CJCs)
Isolated RTD Input module (also
supports Resistive) provides eight isolated
differential Resistive or RTD input channels.
Each channel can be individually configured
for 2, 3, 4 wire RTD or Resistance.
RTD Input Module,
Low Resolution
Lifecycle Status Active Active Active
Module Type RTD Input RTD (and Resistive) Input
Channel to Channel Isolation
RTD Input
Backplane Support Universal Backplane Only. Uses PCI Bus. Universal Backplane Only. Uses PCI Bus. No Backplane Restrictions
Number of Slots Module
Occupies on Backplane 1 1 1
Number of Channels 8 8 6
RTD Types Supported
2 and 3 wire PT 385 / 3916,
N 618 / 672, NiFe 518, CU 426
2, 3 and 4 wire 50, 100, 200, 500,
and 1000 ohm Pt 385; 50, 100, 200, 500, and
1000 ohm Pt 391.6; 100, 200, 500, and 1000
ohm Ni 618; 120 ohm Ni 672; 604 ohm NiFe
518; 10, 50 and 100 ohm Cu 426
3-wire, Pt-100E, Pt-100C, Pt-100Z,
Pt-1000, Cu-10, Cu-50, PT-100, Cu-53,
Cu-100, Ni-120, TD5R, TD5R,
Pt-90 (MIL-7990)
Diagnostics
Open wire, short circuit, positive/negative
rate of change, High, High-High,
Low, Low-Low
Open wire, short circuit, positive/negative
rate of change, High, High-High,
Low, Low-Low
N/A
Channel-to-Channel Isolation
Two Groups of Four 250 VAC Continuous
1500 VAC 1 minute
2550 VDC 1 second
N/A
Notch Filter Yes N/A N/A
Resolution 32-bit IEEE floating point or 16-bit integer
(in 32-bit field) input data format
32-bit IEEE floating point or 16-bit integer
(in 32-bit field) input data format
0.5ºC or 0.5ºF
Accuracy
Calibrated Accuracy at 25°C.
Better than 0.1% of range. Accuracy
depends on A/D filter, data format,
input noise, and ambient temperature.
Calibrated Accuracy at 25°C.
Typical is ±0.5%
±0.5ºC, typical
Input Impedance >1M ohm N/A >1000 Megohms
I/O Required N/A N/A 6 %AI
Fault Protection N/A N/A Zener Diode Clamp
Update Time
10ms per Channel; 4 Channels = 40ms (1KHz
filter)127ms per Channel * 4 Channels =
508ms (8Hz filter)Channels that are disabled
are not scanned, shortening scan time.
15 msec @ 28 Hz to 120 msec @ 2.3 Hz 50 Channels/second
A/D Conversion Type Sigma Delta Sigma Delta 18 bit, integrating
Connector Type
IC694TBBx32, IC694TBSx32 or IC694TBC032.
Sold Separately.
IC694TBBx32, IC694TBSx32 or IC694TBC032.
Sold Separately.
Terminal Block (20 screws),
included with module.
Internal Power Used 400 mA @ 5 V; 350 mA @ 3.3 V 150 mA @ 5V; 300 mA @ 3.3V 70 mA @ 5 VDC

IC695ALG600 | GE Fanuc | RX3i Universal Analog Input Module

PACSystems RX3i Programmable Controllers
The RTD Input Modules provide RTD inputs that allow the direct connection of 2 and
3-wire RTD temperature sensors without using external signal processing (transducers,
transmitters, etc.). All analog and digital processing of the RTD signal is performed on
the module.
RTD I/O Modules
HE693RTD601 HE693RTD660
Product Name
RTD Input Module,
High Resolution
RTD Input Module,
Isolated
Lifecycle Status Active Active
Module Type RTD Input RTD Input
Backplane Support No Backplane Restrictions No Backplane Restrictions
Number of Slots Module
Occupies on Backplane 1 1
Number of Channels 6 6
RTD Types Supported
3-wire, Pt-100E, Pt-100C, Pt-100Z,
Pt-1000, Cu-10, Cu-50, PT-100, Cu-53,
Cu-100, Ni-120, TD5R,
TD5R, Pt-90 (MIL-7990)
3 wire, Pt-100E, Pt-100C, Ni-120,
Cu-10, Pt-1000,TD5R Si
Diagnostics
N/A N/A
Channel-to-Channel Isolation
N/A 5 VAC
Notch Filter N/A None
Resolution 0.125ºC , 0.1ºC, or 0.1ºF 0.05ºC, 0.05ºF, 0.1ºC, 0.1ºF, 0.5ºC or 0.5ºF
Accuracy
±0.5ºC, typical ±0.3ºC
Input Impedance >1000 Megohms >1000 Megohms
I/O Required 6 %AI 6% AI, 6% AQ, 16% I
Fault Protection Zener Diode Clamp Suppression Diode
Update Time
50 Channels/second 50 Channels/second
A/D Conversion Type 18 bit, integrating 18 bit, integrating
Connector Type Terminal Block (20 screws),
included with module.
Terminal Block (20 screws),
included with module.
Internal Power Used 70 mA @ 5 VDC 200 mA @ 5 VDC
