ABB ACS800-04 Drive Modules
❤ Add to collection

ABB ACS800-04 Drive Modules

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

ACS800-04/U4 product overview

The ACS800-04/U4 is an IP00 drive module for controlling AC motors. It is to be

installed into a cabinet by the customer with base or wall fastening. The input cable

terminals are located at the top of the unit whereas the motor cable terminals are

located at the left- or right-hand side of the unit. The unit is delivered pre-assembled

with mounting pedestal and output busbars.

18000.00
¥17000.00
Weight:3.500KG
Quantity:
(Inventory: 13)
Consultation
Accessories
  • ABB-MNS iS desig
    Original :¥153472.00
    With a price :¥153472
    Quantity
  • ABB-07KT97R0280-
    Original :¥14832.00
    With a price :¥14832
    Quantity
  •
    Original :¥
    0.00

      With the total price :¥
    0.00
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

ACS800-04/U4 product overview

The ACS800-04/U4 is an IP00 drive module for controlling AC motors. It is to be

installed into a cabinet by the customer with base or wall fastening. The input cable

terminals are located at the top of the unit whereas the motor cable terminals are

located at the left- or right-hand side of the unit. The unit is delivered pre-assembled

with mounting pedestal and output busbars.




ABB ACS800-04 Drive Modules

What this chapter contains
This chapter describes the construction and operating principle of the drive in short.
ACS800-04/U4 product overview
The ACS800-04/U4 is an IP00 drive module for controlling AC motors. It is to be
installed into a cabinet by the customer with base or wall fastening. The input cable
terminals are located at the top of the unit whereas the motor cable terminals are
located at the left- or right-hand side of the unit. The unit is delivered pre-assembled
with mounting pedestal and output busbars.
Front cover
Pedestal
Motor cable terminals
Input cable terminals
Optional brake and DC
busbars and terminals
PE terminal
Slots for cables going to the RMIO board in the RDCU control unit. The cables are
coiled on the top of the module.
Alternative output cable
terminals (when no
vertical busbars are used)
Fastening bracket
Fastening points
Fastening points
Additional holes for fastening the cable
terminals
Fastening points
RDCU control unit


ACS800-04M product overview
The ACS800-04M is delivered as non-pre-assembled kits, which provide more
alternatives in assembling the units than the basic ACS800-04.
Example configurations
Motor and brake busbars on the
right-hand long side of the module
and DC busbars on the left-hand
side
Output busbars on the short
side of the module
Motor and brake busbars on the
left-hand long side of the module
and DC busbars on the right-hand
side

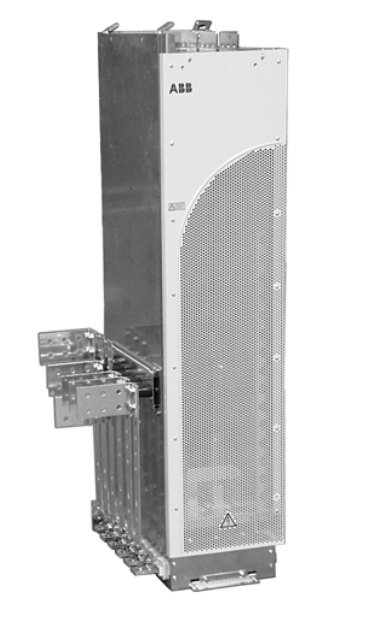

Frame size R8
Output busbars on the short
side of the module
Frame size R7

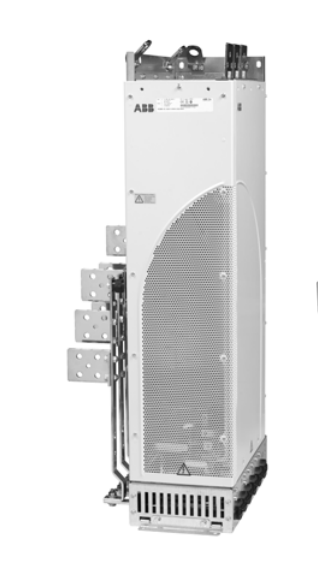

Frame size R7 with bottom exit
(optional top entry busbar
shroud and bottom exit shroud
included). Output busbars are
located at the base of the
module.
Type designation label
The type designation label includes an IEC and NEMA rating, C-UL US, and CSA
markings, a type code and a serial number, which allow individual recognition of
each unit. The first digit of the serial number refers to the manufacturing plant. The
next four digits refer to the unit’s manufacturing year and week respectively. The
remaining digits complete the serial number so that there are no two units with the
same serial number.
The type designation label is located on the front cover and the serial number label
inside the unit. Example labels are shown below.


Type code
The type code contains information on the specifications and configuration of the
drive. The first digits from left express the basic configuration (for example,
ACS800-04-0170-5). The optional selections are given thereafter, separated by plus
signs (for example, +E202). The main selections are described below. Not all
selections are available for all types. For more information, refer to ACS800
Ordering Information (3AFY64556568, available on request).
Type code for ACS800-04 and ACS800-U4 pre-assembled units
Selection Alternatives
Product series ACS800 product series
Type 04 Drive module. When no options are selected: 6-pulse diode input bridge, IP00, top
entry of cables, side exit, RDCU drive control unit, no control panel, no EMC filter,
Standard Control Program, pedestal with output on the long side, output busbar set
for motor, base and wall mounting brackets, one set of manuals. Pre-assembled unit.
U4 Drive module (USA). When no options are selected: 6-pulse diode bridge, UL open
type, open chassis, top entry of cables, side exit, no control panel, no EMC filter, US
version of the Standard Control Program (three-wire start/stop as default setting),
common mode filter in frame size R8, pedestal with output on the long side, output
busbar set for motor, base and wall mounting brackets, one set of manuals.
Size Refer to Technical data: IEC data or NEMA data.
Voltage range
(nominal rating in bold)
2 208/220/230/240 VAC
3 380/400/415 VAC
5 380/400/415/440/460/480/500 VAC
7 525/575/600/690 VAC
Option codes (+ codes)
Resistor braking D150 brake chopper and busbars for brake resistor and DC connection
Filter E210 EMC/RFI filter for second environment TN/IT (grounded/ungrounded) system
E208 common mode filter
Pedestal and output
busbars
0H354 no pedestal
Control panel J400 CDP 312R control panel including a 3-metre panel connection cable
J410 RPMP-11 control panel mounting platform kit including a 3-metre panel connection
cable but no control panel
J413 RPMP-21 control panel holder
Fieldbus K... Refer to ACS800 Ordering Information (3AFY64556568).
I/O L...
Control program N...
Language of manual R...
Specialities P901 coated boards
P904 extended warranty
Safety features Q950 Prevention of unexpected start-up (not to be used with +Q967), including 500 mm
(19.68 in.) cable outside the drive module in frame size R7, 600 mm (23.62 in.) cable
outside the drive module in frame size R8.
Q967 Safe torque off (STO) (not to be used with +Q950), including 500 mm (19.68 in.) cable
outside the drive module in frame size R7, 600 mm (23.62 in.) cable outside the drive
module in frame size R8.
ACS800-04/04M/U4 Drive Modules (45 to 560 kW, 60 to 600 hp)
Hardware Manual
3AFE64671006
ACS800-04/04M/U4 Drive Modules (45 to 560 kW, 60 to 600 hp)
Cabinet Installation
3AFE68360323
ACS800-04/04M/U4 Drive Modules (45 to 560 kW, 60 to 600 hp)
Rittal TS 8 Cabinet Installation
3AFE68372330
ACS800-04M+E202 Drive Modules (45 to 560 kW, 60 to 600 hp)
ARFI-10 EMC Filter Installation Guide
3AFE68317941
Converter module capacitor reforming instructions 3BFE64059629
Drive firmware manuals and guides
ACS800 Standard Control Program 7.x Firmware Manual and
Adaptive Program Application Guide
3AFE64527592
3AFE64527274
ACS800 System Control Program 7.x Firmware Manual and
Adaptive Program Application Guide
3AFE64670646
3AFE68420075
ACS800 Permanent Magnet Synchronous Machine Drive
Application Program Supplement to Firmware Manual for
ACS800 Standard Control Program 7.x
3AFE68437890
ACS800 Master/Follower Application Guide 3AFE64590430
ACS800 Pump Control Application Program 7.2 Firmware
Manual
3AFE68478952
ACS800 Extruder Control Program Supplement 3AFE64648543
ACS800 Centrifuge Control Program Supplement 3AFE64667246
ACS800 Traverse Control Program Supplement 3AFE64618334
ACS800 Winch Control Program (+N698) Firmware Manual 3AUA0000031177
ACS800 Rod Pump Light Control Program Firmware Manual 3AUA0000005304
etc.
Option manuals and guides
ACS800-01/04/11/31/104/104LC Safe torque off function
(+Q967), Application guide
3AUA0000063373
RDCO-01/02/03 DDCS Communication Option Modules 3AFE64492209
AIMA-01 I/O Module Adapter User's Manual 3AFE64661442
Drive Module Trolley for ACS800-04, ACS800-U4, ACS800-04M
with option +H354 and ACS800-07 Hardware Manual
3AFE68481562
ACS800 Single Drive Common DC Configurations Application
Guide
3AFE64786555
