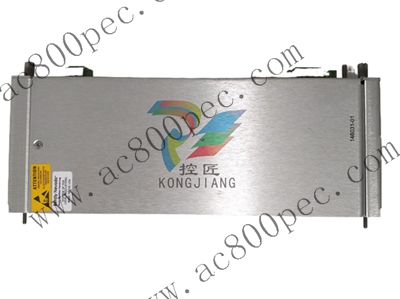

Bently Nevada asset condition monitoring part 148654-01, parker Model PM1-5E1-XD
❤ Add to collection

Bently Nevada asset condition monitoring part 148654-01, parker Model PM1-5E1-XD

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

The 3500/94 VGA Display uses a standard color VGA monitor with “Touch
Screen” technology to display 3500 data. This product has two components, the
3500/94 VGA module and its I/O card, and secondly, the VGA display monitor.
The display monitor, with standard cabling, can be mounted up to 8 m (25 ft)
from the rack.

￥35467.00
￥33555.00
Weight：5.500KG
Quantity：
(Inventory: 5)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

The 3500/94 VGA Display uses a standard color VGA monitor with “Touch
Screen” technology to display 3500 data. This product has two components, the
3500/94 VGA module and its I/O card, and secondly, the VGA display monitor.
The display monitor, with standard cabling, can be mounted up to 8 m (25 ft)
from the rack.

Bently Nevada asset condition monitoring part 148654-01, parker Model PM1-5E1-XD
The 3500/94 displays all 3500 Machinery Protection System information,

including:
• System Event List
• Alarm Event List
• All module and channel data
• 3300 style rack view (API-670)
• Current alarm data (quick view)
• Nine custom display options.
All are accessed through a Main Menu using a Touch Screen.
Users configure the 3500/94 modules for language and for the type of VGA
display through the 3500 Rack Configuration Software. All other types of data
configurations are done locally at the display, giving the operator control over
the displayed data. Users may configure nine custom screens locally. As an
example, one custom screen may show all the 1X measurements, while another
shows all the Gaps, or the custom screens may be organized into train
groupings. Users can organize all system data into any specified sets assigned
the data to a custom screen. An API-670 compatible screen is also selectable.
This screen is similar to a 3300 view of the rack. Each slot shows the Direct or
Gap value on the face of the module with OK and Bypass LEDs.
Multiple Rack Feature
Selecting the 3500/94 Display Router Box provides an additional viewing feature.
This feature allows users to view a maximum of four racks with one display.
Each rack must be individually viewed, but the rack address and alarm status of
each rack is always visible in the upper right corner of the screen. The Display
Router Box must be located within 6 m (20 ft) of each 3500 rack.


Display Monitors
Bently Nevada, Inc. offers five approved display monitor types, which are the
only types that will properly interface to the 3500/94 VGA modules. Each display
is intended to meet different application requirements. It is important that you
make the right selection for your application. For outdoor installations, all
display types require a hood to block direct sunlight. Each display requires a
separate power supply. As an option item, the KVM Extender may be selected
for remote sites up to 305 m (1000 ft). While the KVM Extender will meet most
viewing requirements, the extender will degrade picture image quality and may
be affected by noisy environments. Therefore, users should avoid using the KVM
Extender unless the standard 8 m (25 ft) cable length is not adequate.
All display monitor types are “Touch Screen”. Because the “Touch Screen”
controllers differ, users must configure each display monitor type using the 3500
Rack Configuration Software.
The 3500/94 offers a Display Router Box that allows up to four 3500 racks to
drive a single display. The Display Router Box acts as a switch box that allows
the operator to switch the display between racks. An important feature of the
Display Router Box is its ability to show the alarm and OK status of each
connected rack.
Specifications
3500/94 VGA Display Unit
Inputs
Power
consumption:
4.6 watts max.
High-speed
network:
Monitor status, data and values.
RS232 port (I/0):
Touch controller data.
Outputs
OK LED:
Indicates proper operation of the
module.
TX/RX LED:
Indicates communications
between other system modules.
VGA port (I/O):
Analog red, green, blue and sync
signals to the display.
Environmental Limits
Operating
Temperature:
-30 °C to +65 °C
(-22 °F to + 150 °F)
Storage
Temperature:
-40 °C to +85 °C
(-40 °F to + 185 °F)
Humidity:
95%, noncondensing.
Compliance and Certifications
EMC
Standards:
EN 61000-6-2 Immunity for
Industrial Environments
EN 61000-6-4 Emissions for
Industrial Environments
European Community Directives:
EMC Directive 2004/108/EC
Electrical Safety
Standards:
EN 61010-1
European Community Directives:
2006/95/EC Low Voltage
For further certification and approvals information please visit the
following website:
Hazardous Area Approvals
NOTE: The following approvals apply to the
3500/94 monitor and I/O only.
North America
Approval Option (01)
Ex nC [L] IIC: Class I, Div 2
AEx nC IIC: Class I, Div 2
Groups A, B, C, D
T4 @ Ta = -20 °C to +65 °C
(-4 °F to +150 °F)
Per drawing 149243
ATEX
Approval Option (02)
For ATEX agency approval
ordering options without
internal barriers:
II 3 G
Ex nA nC IIC T4 Gc
T4 @ Ta = -20 °C to +65 °C
(-4 °F to +150 °F)
NOTE: The following certification information
applies to the VGA display monitors only
(both the Parker and the Advantech):
UL listed
Class I, Division 2 Groups A,B,C,D
